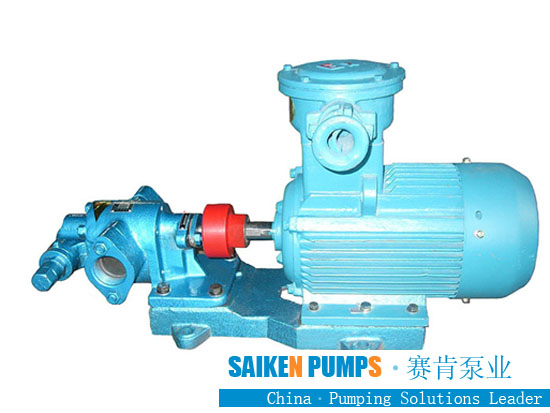

Gear pump flow: 12m3/h pressure: 0.33Mpa caliber: ф50, with motor Y112M-4. Gear pumps are mainly composed of gears, shafts, pump bodies, safety valves, and shaft end seals. The gear has a higher hardness and strength after heat treatment, and it is installed in a replaceable sleeve together with the shaft to run. The lubrication of all parts in the pump is automatically achieved by using the output medium when the pump is working.
The pump has a well-designed oil drain and oil return groove, which is the smallest torque force that the gear bears during work, so the bearing load is small, the wear is small, and the pump efficiency is high. The pump is equipped with a safety valve as overload protection. The total return pressure of the safety valve is 1.5 times the rated discharge pressure of the pump. It can also be adjusted according to actual needs within the allowable discharge pressure range. But note that this safety valve cannot be used for long-term operation of a pressure reducing valve, and can be installed separately on the pipeline when necessary. Looking at the pump from the extended end of the main shaft, it rotates clockwise.
