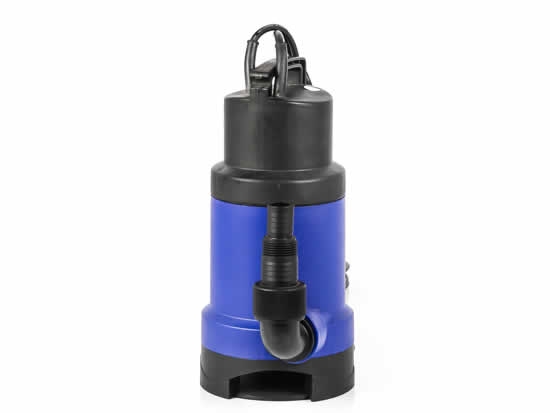

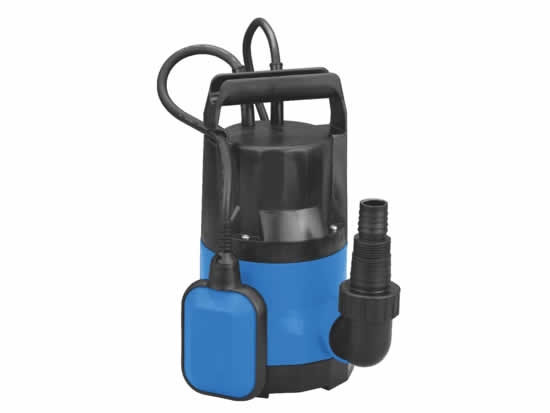

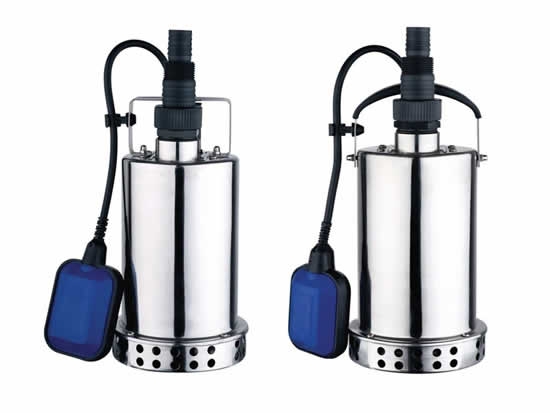

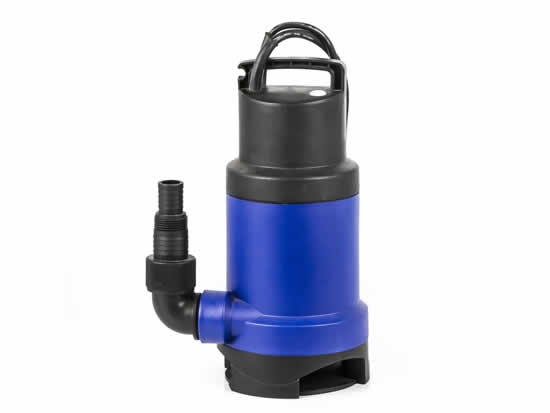

Clean Water Garden Submersible Pump & Garden Submersible Pump

Product Details

Clean Water Garden Submersible Pump commonly used for water drainage in the pond, Garden care, miniature landscape, bathing, domestic cultivation and solar water supply place etc. Besides, it is also suitable for small equipment and water supply system for facilities.

Water is removed by the centrifugal force which is produced from semi closed-type impeller.The semi closed impeller allows big particles as large as 25mm to pass through. Floating switch controls the pump to start on/off to realize the automatic work at a site.

Applications:
Cellars, Garden care, Swimming pool, Pond, flooded area…

Key features:
1, Quickly and efficient drain pools, ponds and flooded basement.

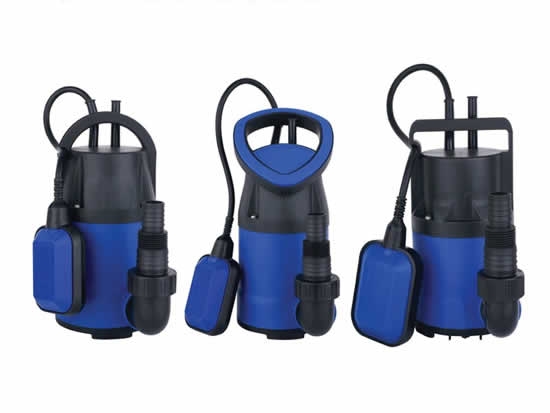

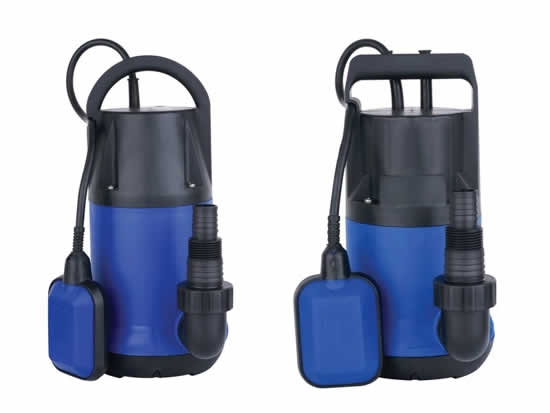

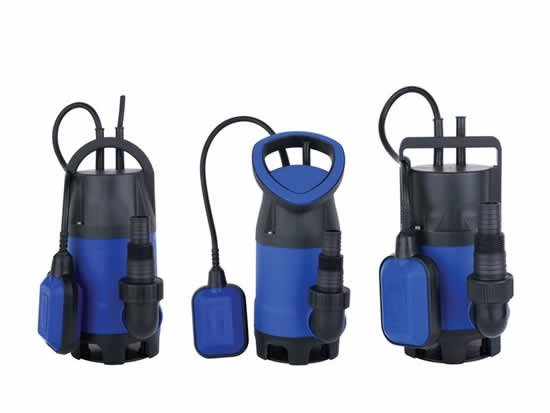

2, Float switch control the pump on and off automatically.
3, High-quality bearing, seals and stainless motor shaft with special treatment ensure long life time.
4, Low consumption electric motor with overload protection ensures safety operation.

Features of Clean Water Submersible Pump:
Unique design, compact structure, attractive appearance
Double sealing protector such as mechanical seal
No leakage, long lifespan

Operating limits:
1. Fluid temperature up to 35degree
2. Maximum ambient temperature 40degree

220v/50Hz, 230v/50Hz, 110v/60Hz & 115v/60Hz models are available on request.

MODEL	Rated Power	Max. Flow	Max. Head	Max. Depth	Max. Grain Size	Dia. Of Pipe	Cable length and size	Weight Approx	Qty/20'CTN
GP200	200W	5500L/H	5M	5M	5mm	1" 1.25" 1.5"	H05RN-F 3G0.75mm2x10m	12.0/13.0kgs	2856pcs
GP250	250W	6000L/H	5.5M	5M	5mm	1" 1.25" 1.5"	H05RN-F 3G0.75mm2x10m	12.8/13.8kgs	2856pcs
GP350	350W	6500L/H	6.5M	5M	5mm	1" 1.25" 1.5"	H05RN-F 3G0.75mm2x10m	13.6/14.6kgs	2856pcs
GP400	400W	7500L/H	7M	5M	5mm	1" 1.25" 1.5"	H05RN-F 3G0.75mm2x10m	14.8/15.8kgs	2856pcs
GP500	500W	9500L/H	7.5M	7M	5mm	1" 1.25" 1.5"	H07RN-F 3G1.0mm2x10m	16/17kgs	2856pcs
GP550	550W	10000L/H	8M	7M	5mm	1" 1.25" 1.5"	H07RN-F 3G1.0mm2x10m	16.8/17.8kgs	2856pcs
GP750	750W	12000L/H	8.5M	7M	5mm	1" 1.25" 1.5"	H07RN-F 3G1.0mm2x10m	18/19kgs	2856pcs
