KCB Diesel Oil Transfer Pump Bronze Gear & lubricating oil transfer pump

Product Details

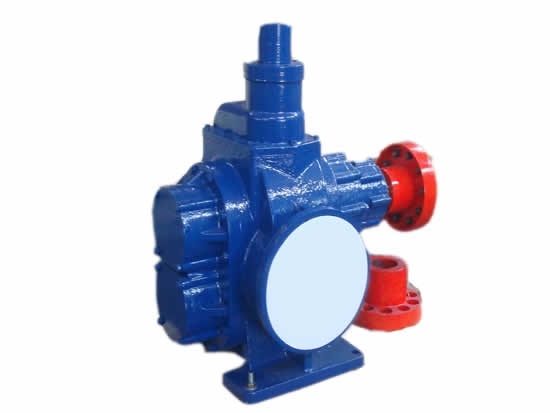

KCB Diesel Oil Transfer Pump Bronze Gear:

Diesel Oil Transfer Pump of KCB Bronze Gear Type：
* Capacity range up to 570 m3/h
* Caliber:3/4"to 14"
* Viscosity:(5-1500cSt)
* MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.
* Pump Body Material : Cast iron / stainless steel（304/316/316L）
* Gear Material : Steel, copper, stainless steel.
* Temperature: less than 180 degrees.(more than 180 degrees need customized)
* Reliable and easy to Maintain
* Good self-priming function.
* Self-lubrication by the pumped liquid.
* With built-in relief valve.
* Screw port or flange port for connection.
* Explosion-proof motor optional.

Applications:
KCB gear pump applies to delivering different types oil or equivalent liquid without solid particles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt. They have also a
constant flow even if delivery pressure changes during operation. Internal fine tolerances make these pumps
usable only with clean fluids having some lubrication properties.
KCB series gear pump flow:18-9600L/min,Power:1.5KW-160KW, Caliber:3/4"to 14",Max Pressure:14.5 Bar,it can be used for fuel oils,lubricating oil transfer,diesel,vegetable oil,Palm Oil,kerosene,biodiesel.Typical application of KCB gear pumps on board ship or vessel are supply of F.O., M.O., L.O., diesel oil, or even petrol, benzene and so on.

KCB Diesel Oil Transfer Pump Model Parameters:

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m3/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33

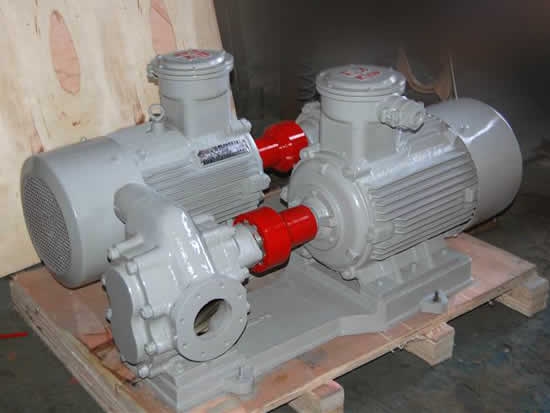

KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8

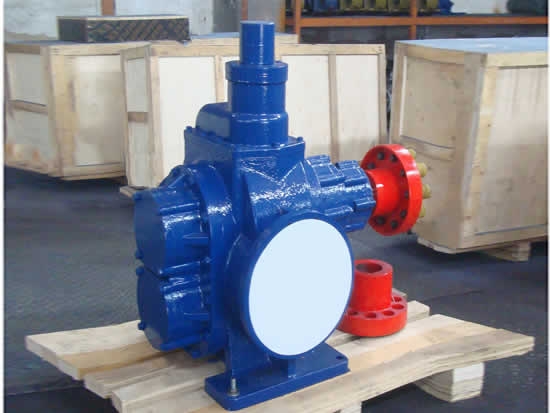

KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
