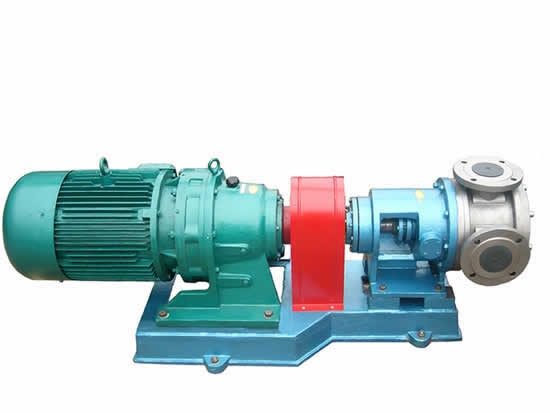

NYP high Viscous Fluid Pump for Adhesive
NYP high Viscous Fluid Pump for Adhesive

NYP high Viscous Fluid Pump for Adhesive

Model: NYP0.78/7.0/52/111/160/727/NYP1670
Rotational speed: 85r/min-1450r/min
Swept volume: 0.78L/100rev-1670L/100r
Discharge pressure: 0.4Mpa/0.6/0.8/1.0Mpa
Categories:Gear Pumps
Add To BasketGet A Quote

Products

All Products
Type
Applications
Product Details
NYP high Viscous Fluid Pump & Rotary Lobe Pump
Rotary Vane Pump, Positive Displacement Pump, Rotor Pump, Industrial Pump for Viscosity Fluids

Technical Parameters of Viscous Fluid Pump
Model: NYP0.78/7.0/52/111/160/727/NYP1670
Rotational speed: 85r/min-1450r/min
Swept volume: 0.78L/100rev-1670L/100r
Discharge pressure: 0.4Mpa/0.6/0.8/1.0Mpa

Description of Viscous Fluid Pump
Rotary vane pump, a kind of positive displacement pump, makes a fluid move by trapping a fixed amount and forcing that trapped volume into the discharge pipe. The flow of pump only depends on the change of chamber volume and the change frequency, rather than the discharge pressure. While working, a pair of synchromesh gears drives a pair of rotors to simultaneously rotate at opposite directions. By doing so, the volume of pump has been changed; higher vacuum degree and discharge pressure have been achieved. This lobe pump is especially suitable to transfer hygiene-degree media and highly corrosive and viscous fluids.

Application Ranges of Viscous Fluid Pump
This heavy oil transfer pump has been widely used mainly in three kinds of media. (1) Fluids that are pure and have a certain degree of viscosity, such as lube oil and crude oil. (2) High-viscosity materials that contain no particles, like rubber, asphalt, paint, adhesives, dyes, lubricants, polyols, food and medicine. (3) High-temperature and high-viscosity polymers, like PA, PB, PC, PE, PS, HIPS, ABS, PP, PET and PVA.

Attractive Advantages of Viscous Fluid Pump
The viscous fluid pump body and cover are both good quality and highly precise thanks to modern process and advanced precise-casting techniques.

We provide two kinds of sealing design. One is mechanical sealing, noted for zero leakage and suitable for lubricant media. The other type is packing sealing whose attractive characteristics include good elasticity, self-lubrication, abrasion resistance and high chemical stability. Clients can choose according to working requirements.

NYP high Viscous Fluid Pump & Rotary Lobe Pump data table：
Model Path mm
Displacement
    L/100rev
Viscosity
    cSt
Speed
r/min
                                                    Pressure(MPa) Connections
0.4 0.6 0.8 1.0
Shaft power(kw)Capacity(L/min)
NYP0.78 15 0.78 20 1390 0.17/9.3 0.23/9.0 0.28/8.8 0.32/8.6 G1/2"
60 1390 0.18/9.5 0.24/9.2 0.28/9.0 0.33/8.9
200 1390 0.31/10.4 0.35/10.2 0.39/10.0 0.43/9.9
600 1390 0.39/10.4 0.44/10.3 0.48/10.3 0.52/10.2
2000 910 0.23/6.8 0.27/6.8 0.30/6.8 0.33/6.7
6000 720 0.24/5.4 0.31/6.1 0.30/6.8 0.40/6.8
NYP2.3 25 2.3 20 1400 0.38/28.4 0.49/27.5




G1"
60 1400 0.59/29.2 0.65/28.8




200 1400 0.61/30.0 0.72/29.6




600 1400 0.92/31.9 0.96/31.7




2000 910 0.61/19.9 0.68/19.7




6000 720 0.77/16.32 0.83/16.2




NYP3.6 40 3.6 20 1450 0.69/46.7 0.94/45.9 1.18/45 1.44/43.4

Flange
60 1450 0.81/47.5 1.09/46.7 1.37/45.9 1.57/44.7
200 1450 1.06/49.7 1.31/49.2 1.56/48.8 1.79/47.3
600 1450 1.45/49.9 1.61/49.6 1.77/49.3 1.93/49
2000 960 1.28/34.3 1.41/33.8 1.54/33.7 1.65/33.6
6000 640 1.08/23.0 1.18/22.9 1.28/22.9 1.37/22.8
20000 583 1.22/20.5 1.24/20.4 1.25/20.4 1.38/20.3
60000 455 0.84/16.3 0.91/16.2 0.98/16.1 1.01/16
NYP7.0
NYP7.0A
(The
original
Model:
NYP3
NYP3A)
40 7.0 20 1450 1.36/98.1 1.8/96 2.0/94.7 2.4/93

Thread
60 1450 1.45/99 1.9/97 2.2/96.4 2.6/95
200 1450 1.62/99.8 2.0/98 2.3/97.5 2.7/97
600 960 1.4/62 1.6/65 1.8/44 2.0/64
2000 960 1.8/67 2.0/66 2.3/65 2.6/65
6000 640 1.5/44.5 1.7/44 1.8/44 2.0/44
20000 583 1.6/40.5 1.9/40 2.1/40 2.2/40
60000 455 1.46/31.5 1.8/31 1.9/31 2.0/31
NYP24 50 24 20 720 1.8/165 2.3/161 2.8/158 3.4/155

Flange
60 720 2.0/166 2.6/164 3.1/162 3.7/158
200 610 1.9/143 2.5/141 3.0/139 3.5/136
600 541 2.1/127 2.6/125 3.0/124 3.5/122
2000 475 2.2/112 2.6/111 2.9/110 3.4/109
6000 357 2.0/85 2.3/84 2.6/83 2.9/83
20000 303 1.9/72 2.2/72 2.4/72 2.6/71
60000 228 1.6/54 1.8/54 2.0/54 2.3/54
NYP52
NYP52A
(The
original
Model:
NYP10
NYP10A)
50 52 20 720 4.3/362 5.8/355 6.9/348 8.1/340

Thread
60 720 4.7/364 6.2/358 7.3/352 7.5/346
200 610 4.6/309 5.9/304 6.9/300 8.0/294
600 541 4.9/275 6.0/271 6.8/268 7.8/264
2000 475 5.0/243 5.9/238 6.6/237 7.6/235
6000 357 4.1/184 4.9/182 5.3/181 6.2/180
20000 303 3.8/157 4.6/156 5.1/155 5.6/155
60000 228 3.1/119 3.7/118 4.0/118 4.5/118
NYP80 80 80 20 615 5.2/471 6.9/461 8.5/451 10.0/433

Flange
60 615 5.5/474 7.2/465 8.8/457 10.5/448
200 544 5.7/421 7.2/414 8.6/408 10.1/401
600 479 6.0/372 7.3/367 8.5/362 9.8/356
2000 417 6.5/326 7.7/322 8.9/319 10.1/315
6000 305 5.6/239 6.6/237 7.5/326 8.4/233
20000 228 5.5/180 6.4/179 6.9/178 7.7/177
60000 188 5.5/149 6.1/149 6.7/149 7.2/148
NYP111
NYP111A
(The
original
Model:
NYP30
NYP30A)
80 111.4 20 615 6.7/660 9.2/647 11.2/634 13.6/622

Flange
60 615 6.9/664 9.4/652 11.5/642 13.9/631
200 544 7.1/589 9.3/580 11.0/573 13.2/563
600 479 7.3/521 9.5/514 11.1/508 13.1/502
2000 417 7.7/455 9.7/450 11.0/447 12.7/442
6000 305 6.9/335 8.4/332 9.4/331 10.6/328
20000 228 6.3/251 7.5/250 8.2/249 9.2/248
60000 188 6.2/209 7.1/208 7.6/208 8.5/207
NYP160 100 160 20 600 8.9/930 12.1/916 15.3/902 17.5/888

Flange
60 600 9.4/935 12.6/922 15.8/910 19.0/898
200 550 12.3/866 15.3/859 18.3/852 21.3/845
600 480 10.2/754 12.8/747 15.4/740 18.0/737
2000 355 9.1/560 11.1/556 13/552 15.1/548
6000 319 10.0/505 11.7/502 13.5/500 15.2/497
NYP220 125 220 20 430 8.8/902 11.9/880 15.0/858 18.0/836

Flange
60 430 9.0/909 12.0/890 15.0/871 18.0/852
200 355 8.5/753 11.1/739 13.7/726 16.3/713
600 320 9.4/682 11.8/671 14.1/660 16.5/649
2000 254 9.1/544 11.0/537 13.0/530 15.1/523
6000 244 10.1/483 11.9/478 13.6/473 15.4/468
20000 160 9.1/347 10.5/345 11.9/343 13.3/341
60000 117 8.4/256 9.4/255 10.4/254 11.4/253
NYP320 125 320 20 430 13.0/1306 18.0/1270 22.0/1235 26.0/1200

Flange
60 430 13.0/1316 18.5/1285 22.0/1255 26.5/1225
200 355 11.8/1091 15.5/1068 19.1/1046 22.8/1024
600 320 13.2/987 16.5/968 19.7/950 22.9/932
2000 284 14.2/881 17.4/867 20.6/854 23.8/841
6000 222 13.7/693 16.2/684 18.7/675 21.2/666
20000 168 13.2/529 15.3/525 17.3/522 19.4/519
60000 125 12.0/397 13.7/396 15.3/395 16.9/394
NYP650 150 650 20 315 19.0/1921 26.0/1857 33.0/1794



Flange
60 315 20.0/1940 26.4/1886 33.2/1832


200 284 17.9/1756 24.0/1711 30.4/1666


600 253 17.6/1572 22.7/1534 28.9/1500


2000 196 15.7/1225 20.6/1201 24.5/1176


6000 160 16.0/1008 19.8/993 22.3/978


20000 117 13.6/745 16.5/738 19.2/731


60000 100 15.0/645 17.2/643 19.5/640


NYP727
( The
original
Model:
NYP50)
150 727 20 315 21.5/2135 29.4/2058 37.3/1980



Flange
60 315 22.4/2157 29.8/2090 37.3/2026


200 280 19.6/1928 26.7/1874 33.5/1820


600 245 19.6/1696 25.1/1652 31.2/1611


2000 200 18.7/1394 23.3/1363 28.5/1334


6000 170 19.2/1195 23.3/1175 27.9/1155
20000 125 17.0/888 20.1/878 23.3/868
60000 100 16.8/720 19.5/717 22.3/713


NYP1670 200 1670 20 250 38.0/3852 52.0/3690 66.0/3529



Flange
60 250 40.0/3900 54.0/3763 68.0/3626


200 225 37.5/3535 50.0/3424 62.5/3313


600 195 37.0/3079 48.0/2990 58.6/2900


2000 160 35.0/2547 44.0/2485 53.0/2422


6000 135 34.6/2177 42.0/2138 50.0/2100


20000 112 35.0/1830 41.5/1810 48.0/1790


60000 85 36.0/1405 35.7/1400 40.6/1392
