Portable hand pump

Products

Product Details

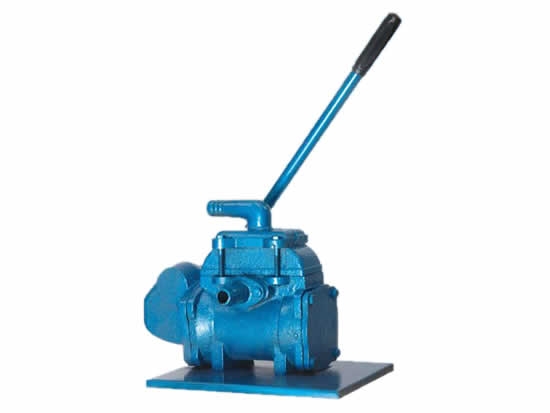

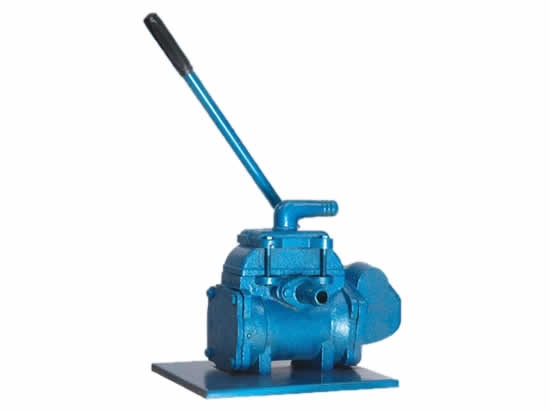

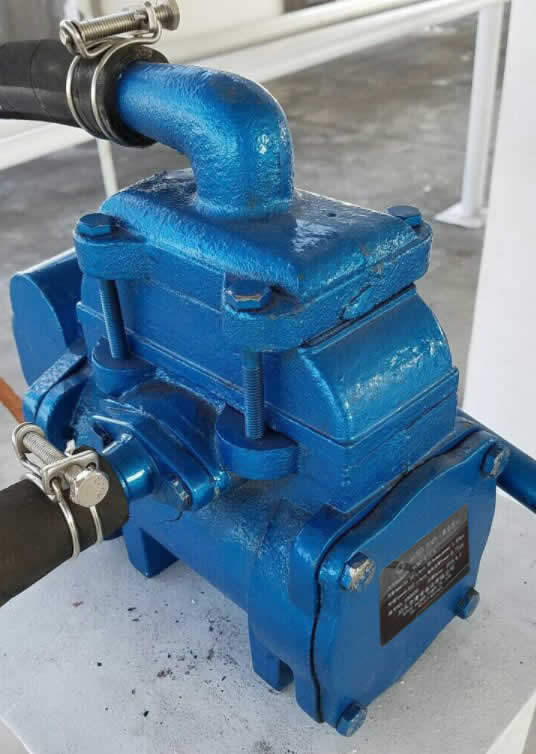

Portable hand pump type

hand pump is suitable for small and medium-sized oil depots, gas stations, agricultural machinery stations, enterprises, factories and mines, fleets, vehicles, ships, airports and other units. The pump is compact in structure, small in size, light in weight, convenient to move, and simple to operate. It only needs one person to shake the handle back and forth by hand to continuously discharge liquid.

Technical parameters of hand pump:

      1. The inlet and outlet diameter is 25mm (the inner diameter of the hose is 25mm)

      2. Pressure 2kg/cm2

      3. Piston stroke 90mm

      4. Piston diameter 100mm

      5. Allowable head 15 meters

      6. Allow 4-5 meters suction range

      7. The number of reciprocations is 35-45 times/min

      8. Flow rate 35-55 liters/min

      9. The weight of the whole machine is 15 kg

Model meaning of hand pump

Such as: BS-25Y/S

     B- is portable

     S-Shunyuan brand hand pump

     25- is the diameter of the suction and discharge outlet of the pump in mm

     Y- is oil pump

     S-for water pump
