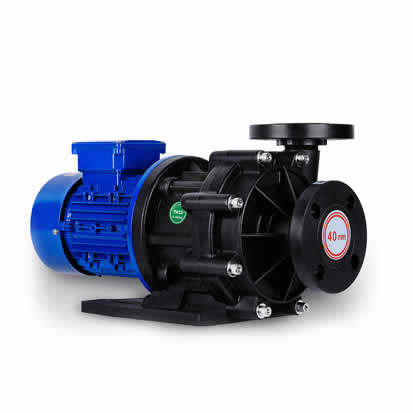

Stainless steel magnetic pump technology features in the unique working principle, the structure of the static seal, the use of magnetic force to achieve non-contact kinetic energy transfer, to ensure that the liquid does not leak a drop, leakage prevention capacity far exceeds the shield pump, can safely transport a variety of high-risk gas liquid, details can see SAIKEN pump industry brought by the following content.
Before explaining the technical characteristics of the stainless steel magnetic pump, it is necessary to understand the structure of the magnetic pump by pump, magnetic drive, motor three parts, the key component is composed of external magnetic rotor, internal magnetic rotor and magnetic isolation sleeve composed of magnetic drive. After the motor is enabled, it will drive the external magnetic rotor to rotate, the magnetic force will penetrate the air gap and non-magnetic material to drive the internal magnetic rotor to rotate synchronously, and the impeller is connected with the internal magnetic rotor, so as to realize the non-contact transfer of kinetic energy, so as to completely eliminate the possibility of media leakage.
Thanks to the characteristics of stainless steel magnetic pump technology, can be used at ease in the field of fire safety, pharmaceutical pesticides, petrochemical and other safety standards coefficient is higher, in the treatment of a variety of flammable, volatile, toxic, acidic gas-liquid mixture do not have to worry about causing leakage, effectively protect the personal safety and construction environment from pollution.
It is worth explaining that, although the magnetic pump has significant advantages, but also has some disadvantages, that is, in the adaptability of the medium and the centrifugal pump, can not deal with hard particles, especially containing magnetic particles of the medium, in terms of flow discharge, is lower than the centrifugal pump, if the treatment of the medium composition is complex, it is recommended to use screw pump. Magnetic pump is used to deal with liquid and gas medium, in addition, in the operation process, like most motor pumps, to avoid idling, otherwise it will cause the burning of the pump.
