Description

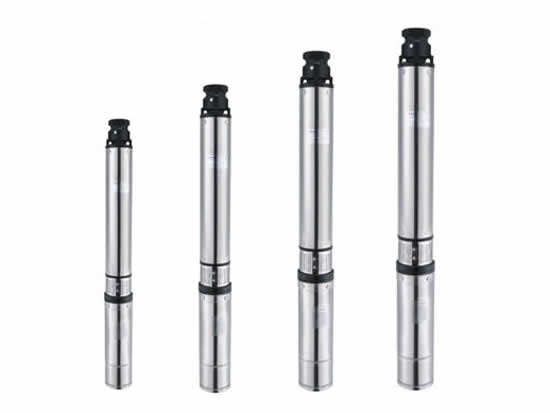

The 3.5 Inch SS Deep Well Pump is made of stainless steel. It is driven electrically. This pump is wear-resistant, hygienic, and highly automated. It can be used for deep well water intake, water tower water supply, farmland irrigation, etc.
Performance Range
Max. Flow: 7.2m3/h
Max. Head: 169m
Application Limits
Max. ambient temperature< 40℃;
Sand content(in mass fraction)up to 0.01%;
hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
pH 6.5 to 8.5;
Maximum: 70 m below the static water table.
Application Fields
Building/construction work/Domestic water supply;
Irrigation and Small water work;
Landscaping;
Water conservancy system;
Factory
Features
Edible oil filled motor, stable& reliable running with pressure regulating membrane;
Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector;
Available with cable with a motor plug, disassemble conveniently;
Available with pump casing with plug, integrated stage floating impellers;
Installation in 3.5" or larger boreholes;
Optional available on request
