Garden Pump

Home Products Type Garden Pump

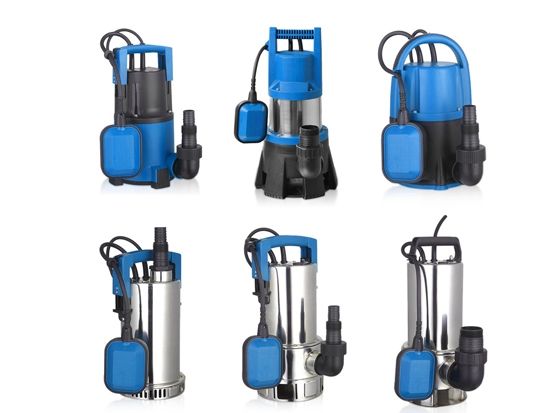

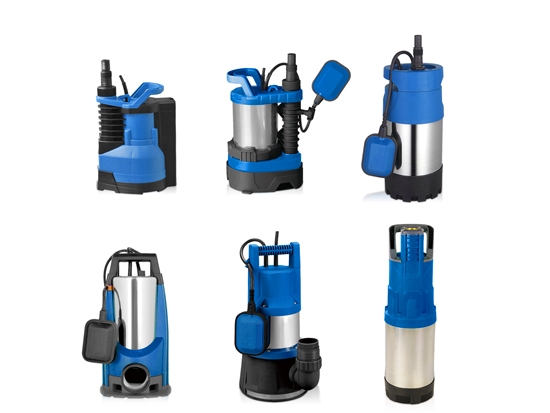

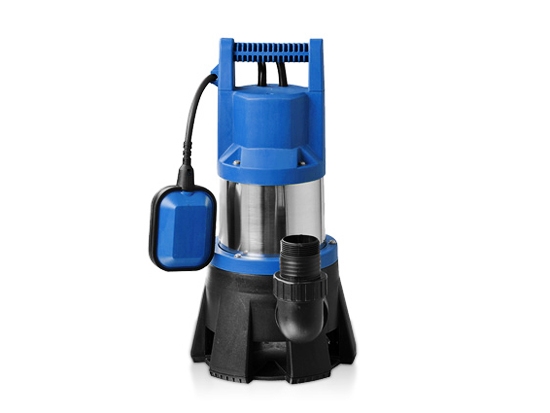

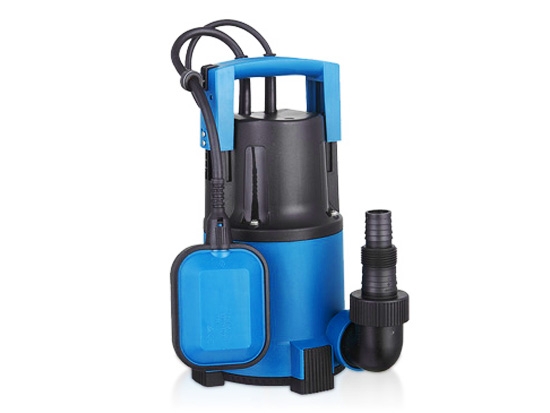

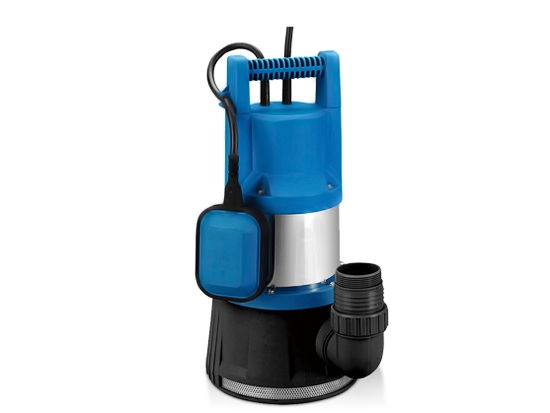

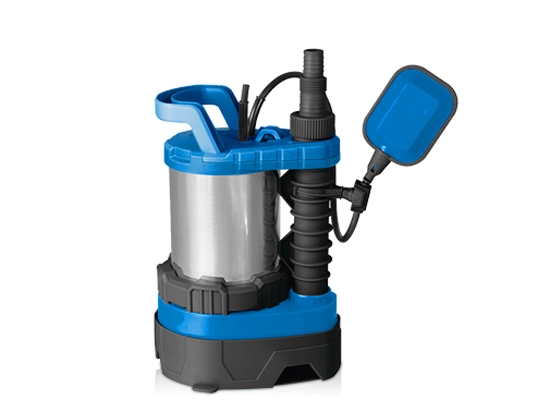

Garden 0.75kw plastic electric submersible water pond pump

Flow Rate Up to 12000L/H
power:200W, 250W, 350W,400W,500W,550W,750W
Max Head (pressure) Up to 8.5m
Sizes: 1" 1.25" 1.5"
Max Temperature: 40°C

Products

Product Details
Garden submersible pump are fabricated by top-grade raw material (such as stainless steel) and are used in many applications. They are mainly used for water supply and drainage in the pond, miniature landscape, shower, bath, domestic cultivation, solar water supply place, small cellar and parking lot etc. They can also be used in water supply systems of small equipment and facilities.

Configurations:
1. High quality bearing
2. Automatic float switch
3. Motor is equipped with thermal protector
4. 10-meter rubber cable
5. Fabricated shaft and stainless steel rotating shaft
6. Stainless steel casing

As a professional manufacturer of garden submersible pumps in China, we have supplied numerous customers with high quality submersible pumps. In addition to garden submersible pumps, we produce other water pumps and Jet pumps, deep well pumps, etc
If you have any queries, please feel free to contact us!

Operating limits:
1. Fluid temperature up to 35degree
2. Maximum ambient temperature 40degree

220v/50Hz, 230v/50Hz, 110v/60Hz & 115v/60Hz models are available on request.
MODEL
Rated Power
Max. Flow
Max. Head
Max. Depth
Max. Grain Size
Dia. Of Pipe
Cable length and size
Weight Approx
Qty/20'CTN
GP200
200W
5500L/H
5M
5M
5mm
1" 1.25" 1.5"
H05RN-F 3G0.75mm2x10m
12.0/13.0kgs
2856pcs
GP250
250W
6000L/H
5.5M
5M
5mm
1" 1.25" 1.5"
H05RN-F 3G0.75mm2x10m
12.8/13.8kgs
2856pcs
GP350
350W
6500L/H
6.5M
5M
5mm
1" 1.25" 1.5"
H05RN-F 3G0.75mm2x10m
13.6/14.6kgs
2856pcs
GP400
400W 7500L/H
7M
5M
5mm
1" 1.25" 1.5"
H05RN-F 3G0.75mm2x10m
14.8/15.8kgs
2856pcs
GP500
500W
9500L/H
7.5M
7M
5mm
1" 1.25" 1.5"
H07RN-F 3G1.0mm2x10m
16/17kgs
2856pcs
GP550
550W
10000L/H
8M
7M
5mm
1" 1.25" 1.5"
H07RN-F 3G1.0mm2x10m
16.8/17.8kgs
2856pcs
GP750
750W
12000L/H
8.5M
7M
5mm
1" 1.25" 1.5"
H07RN-F 3G1.0mm2x10m
18/19kgs
2856pcs
