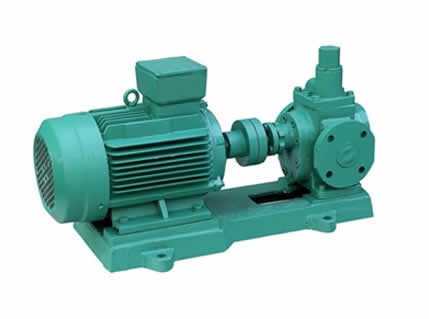

The YCB Horizontal Gear Pump is designed for the Transfer of lubricating fluids such as fuels and oils with a viscosity up to 1500cSt.
The self-priming and high pressure nature of the gear pump design makes it suitable for installations where suction conditions aren’t ideal, for example where the fluid needs to be pumped over a long distance or where the pump is located above the fluid.
Pump material can be cast iron, carbon steel, stainless steel and so on.
Thanks to their long coupling, the YCB
gear pumps are easier to maintain as you can get to the pump head without removing the motor first. It also makes them more durable for continuous use as they have additional bearings in the pump head to share the strain of operation.
Features of the YCB Gear Pump:
Long coupled, self-priming gear pump
High pressure capabilities for difficult suction conditions
Smooth, pulseless flow
Additional bearings in pump head to share the strain of operation
Inline ports, supplied flanged as standard
Horizontal orientation
Pressure differential safety valve – 1.5 times the rated pressure
Soft packing or mechanical seal
Suitable for lube and fuel oils between 5-1500cSt
230v, 380v, 440v three phase 50Hz/60Hz motors available. IP55 as standard
Marine Applications:
Fuel oil cargo pumps for vessel loading and unloading
Fuel transfer such as marine gas oil (MGO),
heavy fuel oil (HFO) and low sulphur (LSFO)
Lube oil transfer between containers
Circulating lubricants around a system to ensure the
engines and gearbox
Thermal oil pump for burner/boiler feed
This model could be with hot jacketed for liquid which tends to solidify at room temperature such as Bitumen, Furnace oil, Asphalt, Tar, Starch, Molasses, Naptha, RFO, Silicate, Wax, Soap solution. Because This model have jacket construction facilitate the heating the pump by steam or thermic fluid.

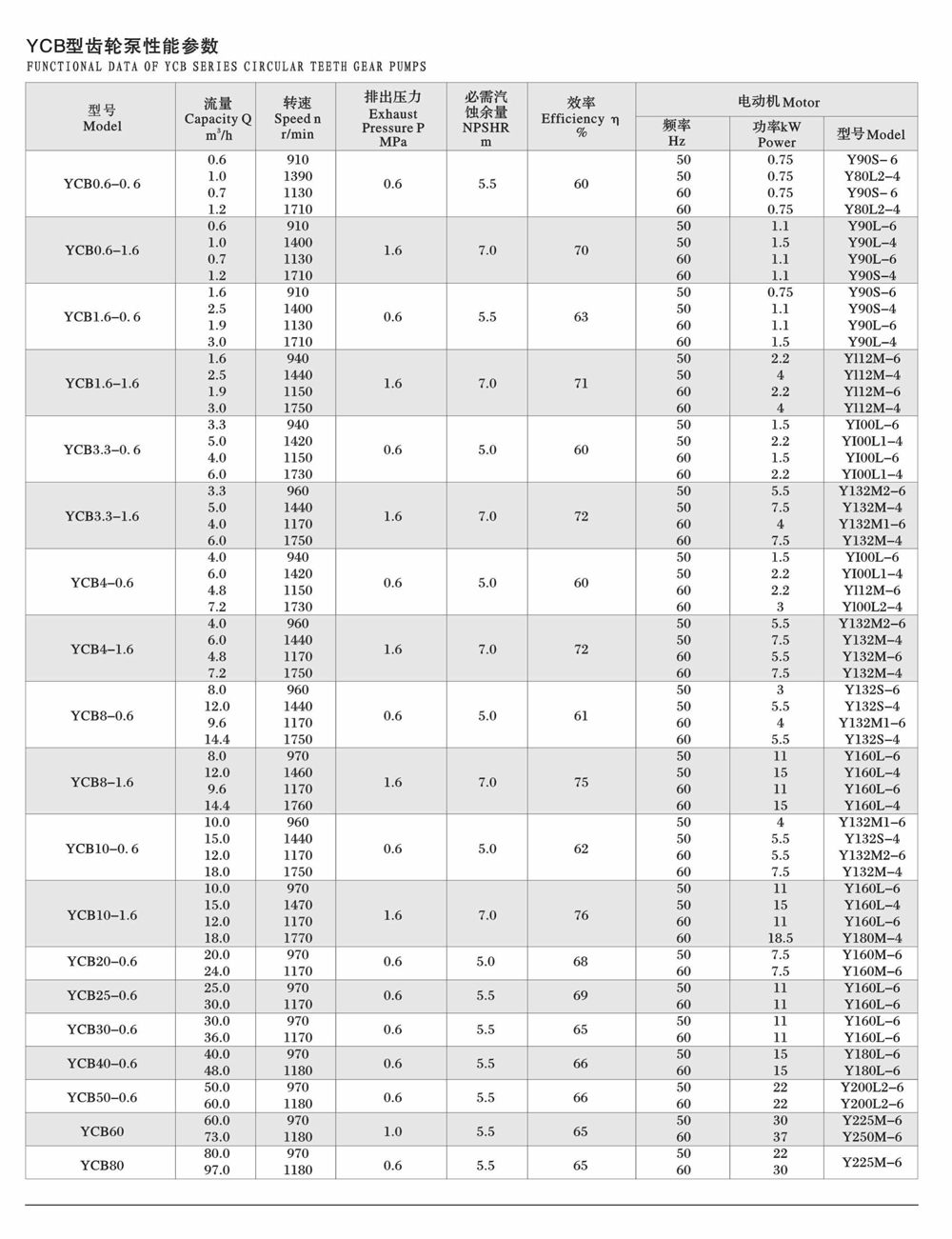

Performance Data:
