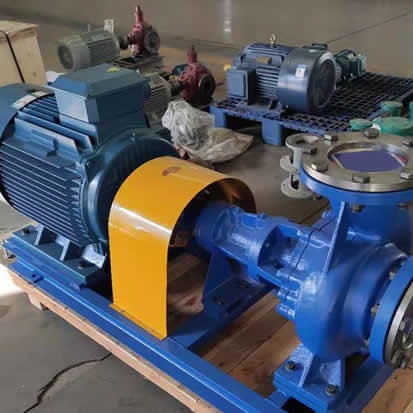

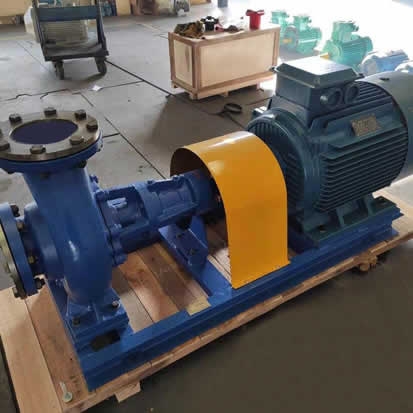

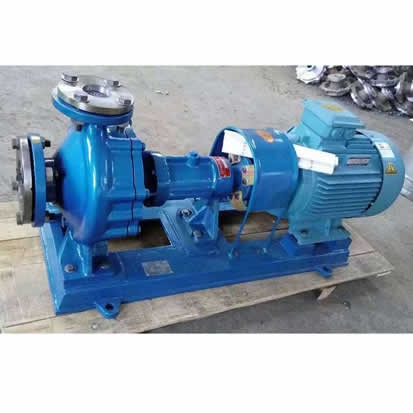

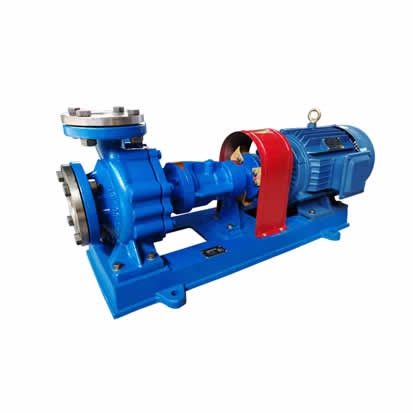

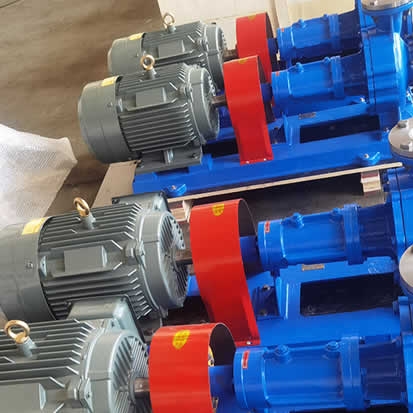

High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump
High Temperature Circulation Thermal Oil Centrifugal Pump

High Temperature Circulation Thermal Oil Centrifugal Pump

High Temperature Circulation Thermal Oil Centrifugal Pump is suitable for heat-conduction oil, or other hot oils with temperature ≤370°C, It has a reasonable structure, advanced technology, high efficiency, long-term stable operation without leakage in the hot state. Used to transport not containing solid particles of corrosion high temperature liquid with system of directly wind cooling.
Categories:Thermal Oil Pumps
Add To BasketGet A Quote

Products

All Products
Type
Applications
Product Details
The Stainless Steel Hot Cooking Oil Transfer Pump is used for food oil processing, filling and conveying section of product oil with a capacity of 2-300m³/h and a head of 10-110meters.
Usually, the materials of the flow part are cast steel, stainless steel 304, SS316, SS316L.
The volute and impeller flow path are polished with three sandblasting so as to meet food-grade requirements.
WRY series hot oil pump:
(1) Adopts packing seal and mechanical seal combination, and the packing seal packing with high temperature resistance, with good thermal adaptability, and mechanical seal with high mechanical strength, good wear resistance of hard alloy material, to ensure the sealing performance under high temperature conditions.
(2) Using the third generation PTFE (PTFE) to do lip type seal, so that the sealing performance leap-forward, 25 times more reliable than the rubber seal reliability, corrosion resistance is very strong.
This hot oil pump is the second generation product based on the research and development of our company after learning and absorption of foreign oil pump. The basic structure is single-stage single suction cantilever leg supporting, the pump inlet is axial suction, export center vertically upward, mounted on the base with motor.
Hot oil pump is supported by the ball bearings at the both ends supported structure, front end lubricated by lubricating oil, back end lubricated by grease, in the middle there is a guide pipe, for observation the sealing condition at any time and the recycling of conduction oil.
The traditional water cooling structure is changed to natural cooling structure, making it simpler structure, smaller volume, lower operation cost, better performance and more reliable usage.

Datasheet:

Model
WRY 		Inlet/outlet
(mm) 		Flow
（m3/h) 		Head
(m) 		Speed
(r/min) 		Motor power
(kw) 		Efficiency
η% 		NPSH
m
WRY26-20-100 26/20 4.5 15 2825 0.75 40 0.8
WRY50-32-150 50/32 8 22 2840 1.5 42 1.1
WRY50-32-160 50/32 10 25 2840 2.2 42 1.2
WRY65-40-160 65/40 12.5 25 2880 3 45 1.2
WRY50-50-170 50/50 12.5 32 2890 4 45 1.2
WRY65-40-190 65/40 18 40 2890 5.5 52 1.4
WRY65-50-180 65/50 32 32 2900 5.5 52 1.7
WRY65-50-170 65/50 40 25 2900 5.5 52 1.8
WRY65-50-160 65/50 52 16 2900 5.5 51 1.9
WRY65-40-200 65/40 25 50 2900 7.5 53 1.6
WRY80-50-180 80/50 40 40 2900 7.5 63 1.8
WRY80-50-170 80/50 60 20 2900 7.5 63 2.8
WRY100-65-190 100/65 60 38 2930 11 68 2.6
WRY100-65-200 100/65 80 40 2930 15 70 3.1
WRY100-65-220 100/65 58 50 2930 15 68 2.4
WRY100-65-210 100/65 90 45 2930 18.5 70 3.4
WRY100-65-235 100/65 58 60. 2930 18.5 62 2.3
WRY100-65-230 100/65 100 55 2940 22 70 3.6
WRY125-100-190 125/100 155 30 2930 22 72 5.6
WRY100-65-240 100/65 100 70 2950 30 69.8 3.5
WRY100-65-257 100/65 100 80 2950 37 67 3.5
WRY125-100-220 125/100 160 45 2950 37 75 5.5
WRY125-80-250 125/80 160 60 2950 45 74 5
WRY125-80-270 125/80 150 85 2970 55 73 4.7
WRY125-100-250 125/100 200 60 2970 55 76.8 6
WRY125-100-257 125/100 260 70 2970 75 77 7.4
WRY125-100-265 125/100 200 80 2970 75 74 5.8
WRY125-100-260 125/100 300 70 2970 90 78.2 8
WRY125-100-270 125/100 220 85 2970 90 76 6
WRY150-125-250 150/125 350 60 2970 90 76 9
WRY150-125-240 150/125 400 50 2970 90 76 10.5
WRY150-125-270Y 150/125 340 76 2970 110 78.6 8.5
WRY150-125-260Y 150/125 400 70 2970 110 74 9.8
WRY150-125-280Y 150/125 400 78 2970 132 80.6 9.8
WRY150-125-285Y 150/125 370 85 2970 132 80 9.5

WRY Single Stage Centrifugal Thermal Oil Pump
FLOW RATE UP TO 550M³/HR
HEAD (PRESSURE) UP TO 125M
INLET/OUTLET SIZES DN25 TO DN150
OPERATING TEMPERATURE UP TO 380°C
DRIVE OPTIONS ELECTRIC MOTOR, ENGINE
The WRY end suction, single stage centrifugal thermal oil pump can be used for thermal oil that is free of solid particles. Common fluids pumped include thermal oil, heat transfer oil, bitumen and low viscosity high temperature industrial oils and common applications include steel plants, plastic manufacturing facilities, heat transfer circulating systems, and the rubber and wood processing industry for boiler feed.
The centrifugal thermal oil pump design has many benefits:
The back pull out design allows the motor to be removed while the pump is still connected to the pipework, this in turn allows time saving while the pump is serviced/maintained.
This thermal oil pump is air cooled meaning no additional cooling device is required.
It is fitted with a high temperature resistant seal allowing it to pump fluids as high as 350°C
Can pump a wide range of low viscosity high temperature oils
Suitable for thermal oils including, Mobiltherm, Paratherm, Duratherm, Multitherm, Dowtherm and Marlotherm
Back pull out design to ensure quick and easy maintenance
Maximum fluid temperature of 380°C
High temperature resistant seal
Air cooled
Independent pump and motor shafts
Single phase and three phase 50hz / 60hz motors. IP55 as standard.
Long coupled with baseplate
If you are interested in this hot oil pump, please contact us ask for catalogue
