Plastic (PP or PVDF) vertical pump in PP or PVDF,Max capacity of 1700 LPM and max head of 38 m,Max 15hp
This is single stage vertical centrifugal pump that is simple but very reliable in duty. It is manufactured by plastic (PP or PVDF) or stainless steel (AISI 316). The pump is specialized for transfer and circulation of various liquids from containers, sumps and tanks.
Leakage free and dry running safe Installed vertically with the motor above the liquid surface. In this way the pump does not need any mechanical seal that usually is a source for leakage problems., So using hydrodynamic seal, Furthermore the pump is designed to be dry running safe.

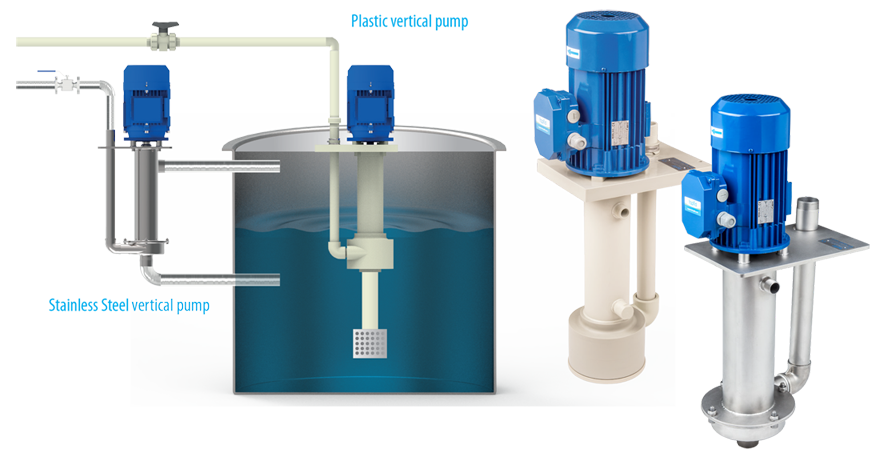

Replacing self priming pumps In many installations this pump replaces a self-priming pump. The pump head is submersed in the liquid. The pump operates more reliably compared to a self-priming pump. The submersion depth is up to 825 mm (depending on model), but may also be equipped with a suction extension.
Maintenance free The simple design without bearings or mechanical seals grants for a pump that is usually maintenance free. It is also insensitive of solids, particles up to Ø 8 mm are allowed.

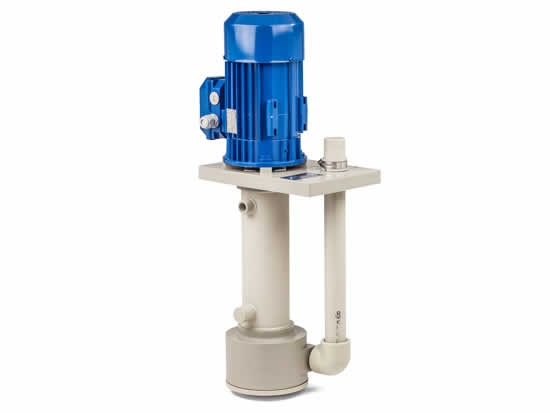

PP vertical pump PP (polypropylene) is suitable for variety of chemicals at temperatures up to 70°C. Ideal for pickling baths and acidic degreasing solutions.
PVDF vertical pump PVDF (polyvinylidene fluoride) has superior chemical and mechanical features. Ideal with hot acids up to 100°C, for example hot hydrofluoric acid.

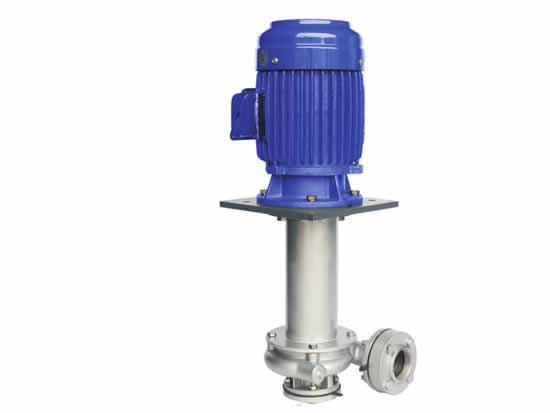

Stainless steel vertical pump The stainless steel version is ideal at higher temperatures, up to 100°C and for special applications like transfer hot sodium hydroxide. All wetted metal components are made of corrosion resistant stainless steel AISI 316
