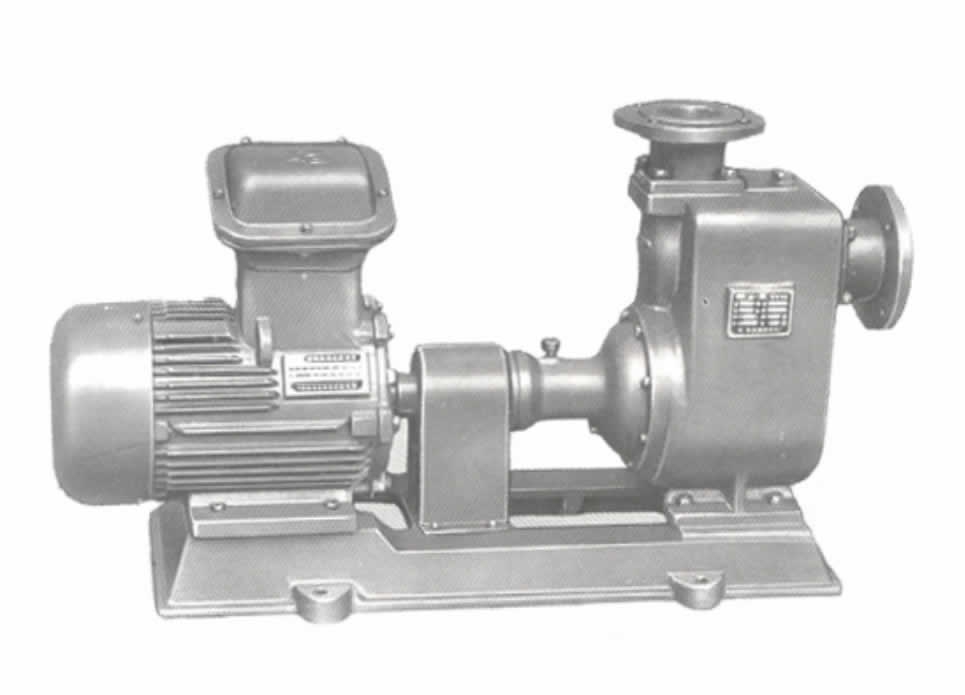

CYB-S ATEX self-priming oil pump

Flow Rate Up to 450m³/h
Max Head (pressure) Up to 100m
Sizes:DN25-300mm Outlet
Max Temperature:120°C

Products

Product Details
Type CYB-S ATEX pump, self-priming oil pump, is designed for pumping petrol, kerosene, transfer diesel oil and edible oil in oil depot, oil vessel, wharf, oil tank, airport and so on.

Centrifugal self-priming pumps for diesel oil, gasoline transfer with cast iron pump body, bronze impeller, SS shaft, EX motor.
It is  suitable for pumping gasoline, diesel, kerosene and aviation gasoline at temperature between -20 - 80C. They are also widely used as discharge pumps for oil ships, oil tanks, oil reservoir or oil cargoes as well as for transporting water and sea water. When being equipped with corrosion resistant mechanical seals and stainless steel material, the self-priming centrifugal oil pumps can serve for transportation of chemical liquids.

Working Principle: Centrifugal self-priming pump

Casing/Wetted parts material/impeller: Cast iron, Stainless Steel/Cast iron, Stainless steel/Bronze
