Product Details

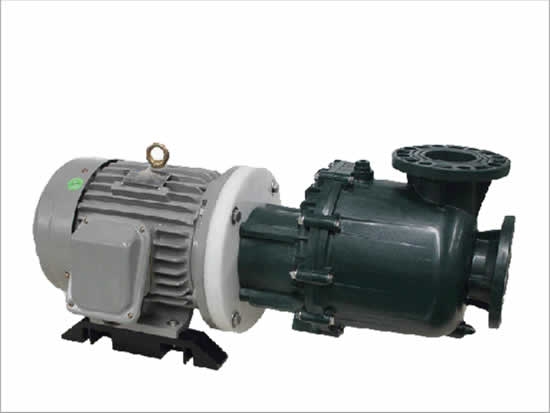

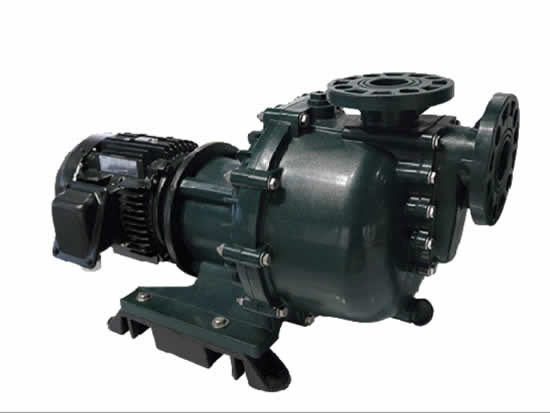

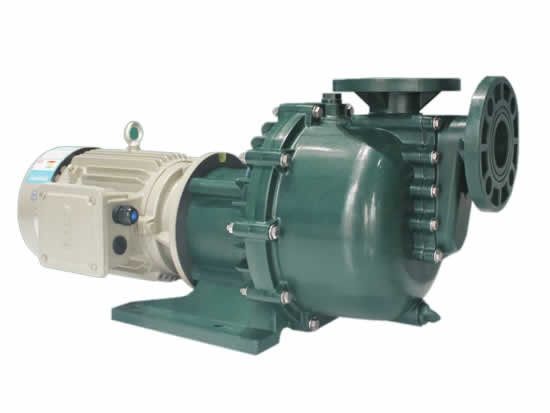

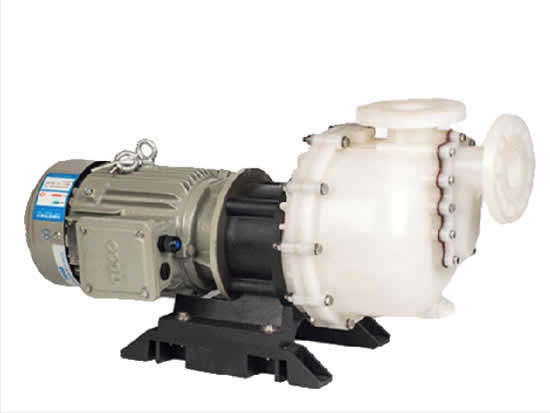

PVDF Self-Priming Pump
Special self-priming design, strong self-priming, self-priming up to 20ft
The head can reach 40 meters, and the flow rate is 1000L/min
Choose different plastics according to the chemical nature of the transfer liquid, including GFRPP, PVDF, CPVC, polypropylene, PP
Maximum liquid temperature: GFRPP/PP 80 degrees Celsius, PVDF 90 degrees Celsius
The motor made of stainless steel 316 is connected to the standard motor along the long axis, and a Teflon sleeve is sleeved on the axis. There will be no contact between the axis assembly and the pumped chemical solvent or liquid.
The shaft seal is cooled by pumping liquid, and the shaft seal is always immersed in the liquid, so when the pump stops, crystals around the shaft seal will not form!
Pump inlet and outlet and specifications have 1-1/2" 2" 3" and other flange joints
High efficiency, low cost, no leakage, easy to maintain
Good corrosion resistance
Independent thrust bearing for maximum reliability
Liquid specific gravity up to 1.8
If you need more information, please contact us by email!
