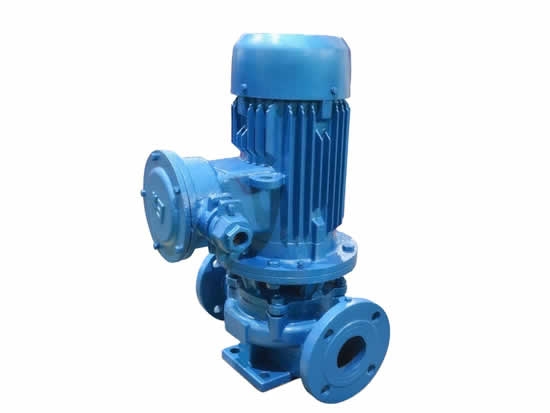

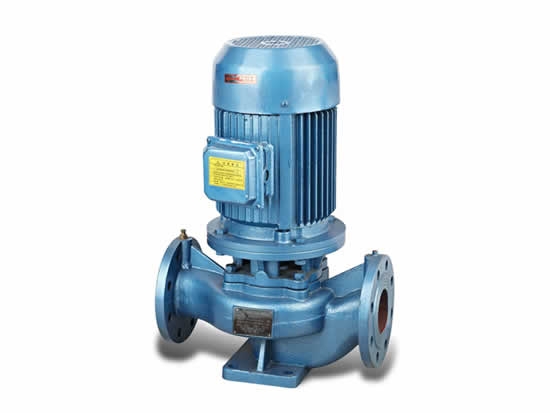

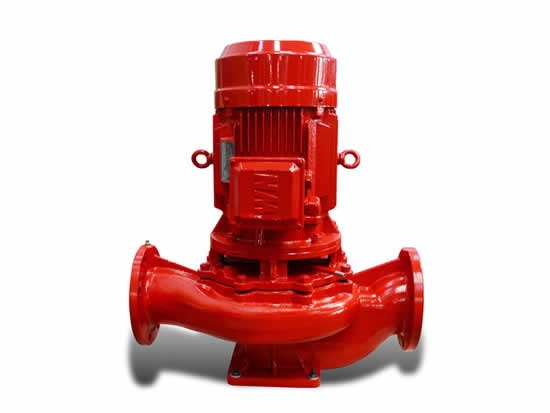

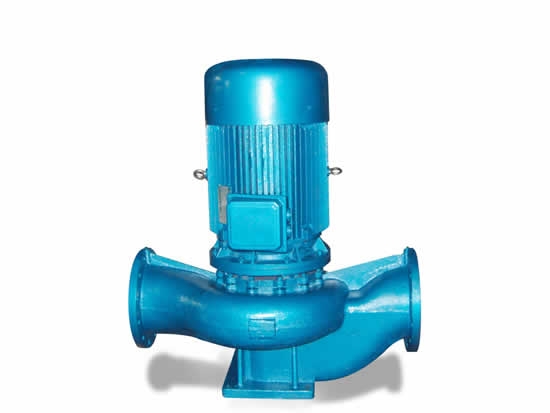

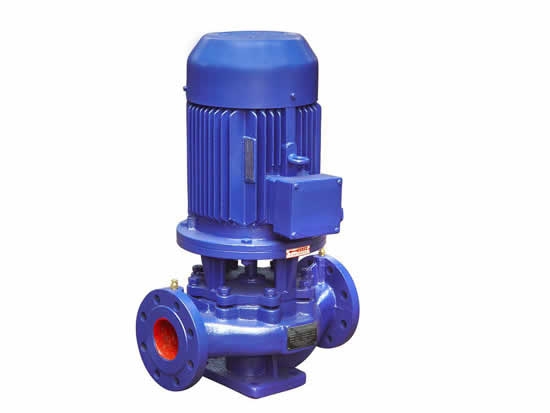

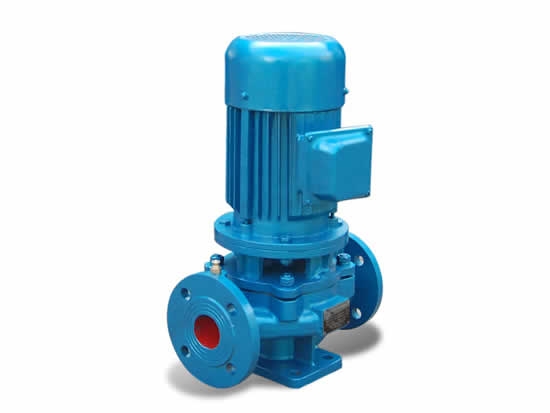

ISG vertical pipeline centrifugal pump product overview: The ISG vertical pipeline centrifugal pump is an excellent hydraulic model selected by the scientific and technical personnel of the unit and the water pump experts in the United Nations. It adopts the performance parameters of the IS-type centrifugal pump and is designed by ingenious combination on the basis of general vertical pumps. At the same time, based on the ISG type, suitable hot water, high temperature, corrosive chemical pumps and oil pumps are dispatched according to the use temperature and medium. This series of products have the advantages of high efficiency, energy saving, low noise and reliable performance.

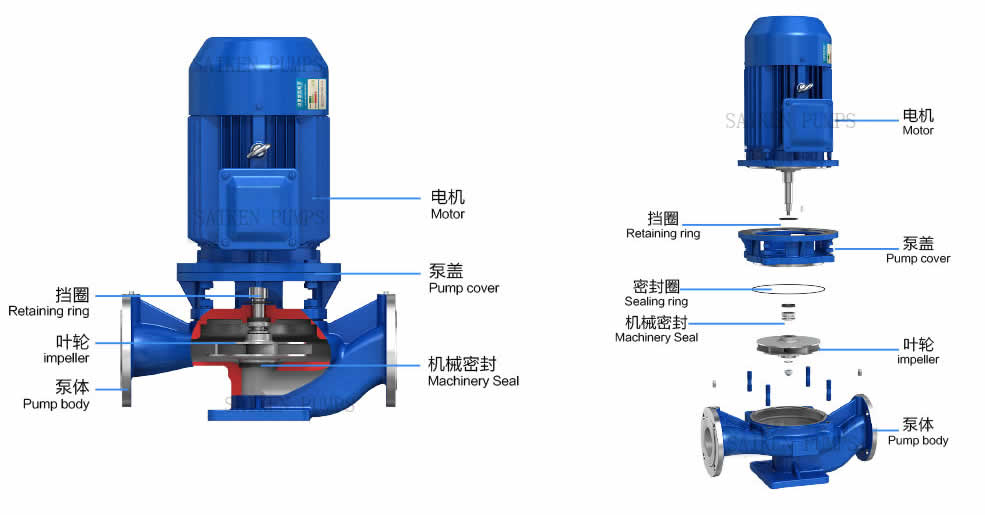

ISG vertical pipeline centrifugal pump product features: 1. The pump is a vertical structure, with the same inlet and outlet diameters and located on the same centerline. It can be installed in the pipeline like a valve. It has a compact and beautiful appearance, small footprint, and low construction investment. Can be used outdoors. 2. The impeller is directly installed on the extended shaft of the motor. The axial size is short, the structure is compact, and the bearing configuration of the pump and the motor is reasonable, which can effectively balance the radial and axial loads generated by the pump operation, thereby ensuring the smooth operation of the pump. Low vibration and low noise. 3. The shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and adopts hard alloy material, wear-resistant seal, which can effectively extend the service life of mechanical seal. 4. Convenient installation and maintenance, no need to dismantle the pipe road system. All the rotor parts can be drawn out by removing the nut of the pump joint base. 5. The series and parallel operation modes of pumps can be adopted according to the requirements of use, that is, the needs of flow and head. 6. The vertical and horizontal installation of the pump can be adopted according to the requirements of pipeline layout.
ISG vertical pipeline centrifugal pump working conditions: 1. Suction pressure ≤1. 0MPa, or the maximum working pressure of the pump system ≤ 1.6 MPa, that is, pump suction inlet pressure + pump head ≤ 1.6 MPa, and the pump static pressure test pressure is 2.5 MPa. Please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6 MPa, it should be stated separately when ordering, so that the flow-through part and the connection part of the pump are made of cast steel. 2. Ambient temperature <40℃, relative humidity <95%. 3. The volume content of solid particles in the conveyed medium does not exceed 0.1% of the unit volume, and the particle size is less than 0.2mm. Note: If the medium used is with fine particles, please specify when ordering so that the manufacturer can use wear-resistant mechanical seals.
