Offering you a complete choice of products which include SS rotary gear pumps, SS double helical gear pump, Stainless Steel external gear pump, Stainless steel internal gear pump, ss twin gear pump.

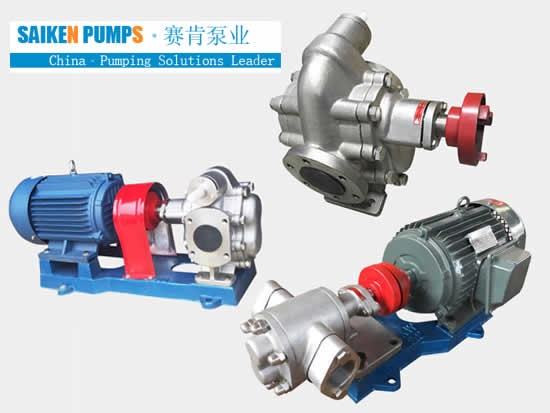

SS rotary gear pumps Model – KCB / YCB
SAIKEN PUMPS offer gear pump model “KCB/YCB” Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model “KCB/YCB” having three piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which it help to increase life and performance of pump. Model “KCB” is a bush bearing type of pump which can be used for viscous liquid having sufficient lubricating value for intermittent duty, however for continuous duty, needle roller bearing in Model “YCB” and it will be selected for liquid having low viscosity, power lubricating values if liquid containing dirt or impurities pump will independently lubricated bearing should be selected in Model 'NYP', liquid which tends to solidity at lower temperature the jacketing construction should be selected to facilitate the heating of the pump lay steam or thermic fluid etc.
These pumps are having flange at the end of suction and delivery which are available in 1/2" to 14" size. These pumps can be operated up to pressure of 14.5 kg/cm² with 10 LPM to 9600 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 50,000 SSU and maximum temperature up to 250ºc.

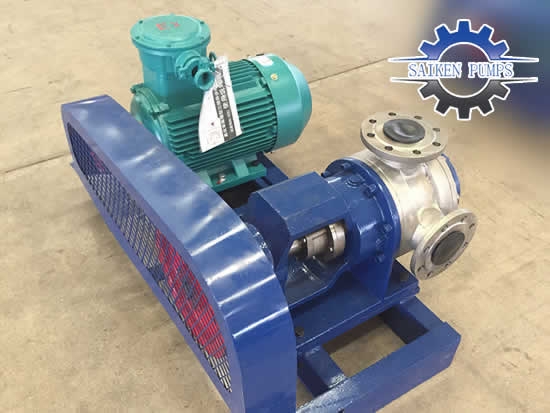

Stainless steel internal gear pump Model – NYP
NYP SS internal gear pump are self-priming, Built-in safety valve, positive displacement pumps. With the characteristics of low rotation speed and high output torque, pump shows his talents to transfer high viscosity liquid products. For example: resin and so on,Its unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage, viscosity can be as high as 300000CP.
Features & Advantages: ● Smooth & steady discharge without pulsation, little vibration and low noise. ● Outstanding self-priming capability. ● Identical rotation direction of the internal and outer rotors reduces friction and thus increases operation life. ● Flow rates are in linear relation with rotation speed. As a result flow rates are easily adjustable by speed regulations. ● Heating & cooling jacket may be equipped depending upon media requirements. ● Working temperature up to 200°C when suitable materials are selected. ● Ideal for high Viscosity applications.
