Polypropylene Vertical Submersible Pump & PP Vertical Chemical Pumps

Product Details

China manufacturer of Polypropylene Submersible Chemical & Acid Pump, PP Vertical Chemical Pumps, Polypropylene Vertical Pump and PP Immersion Pump with effective & timely delivery.

1. Product Description:

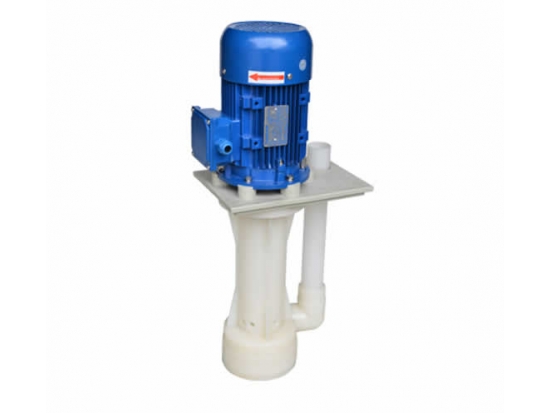

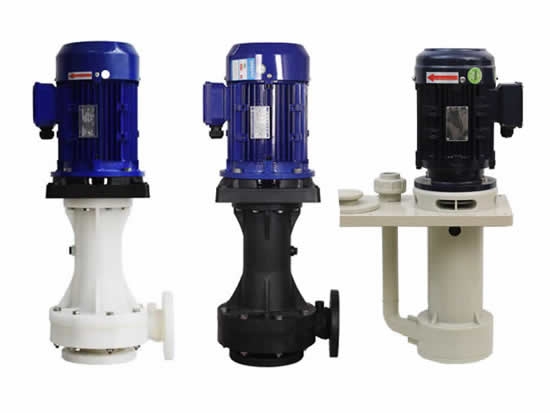

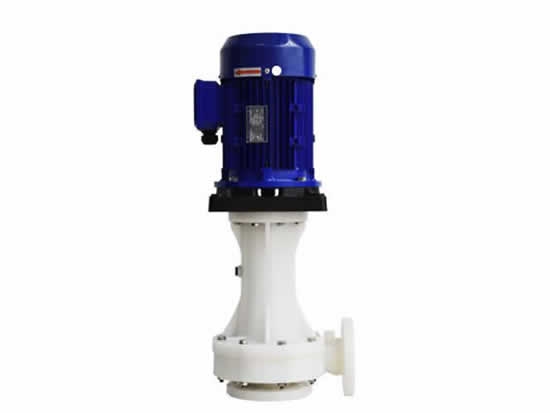

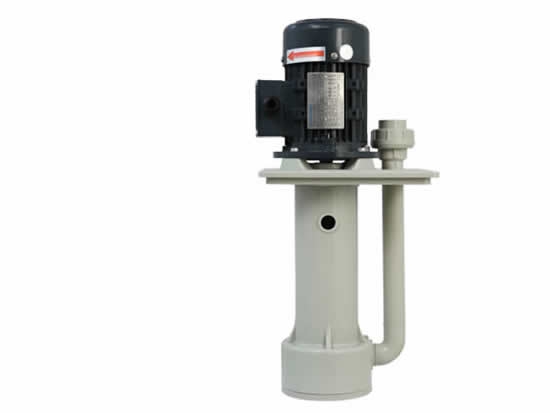

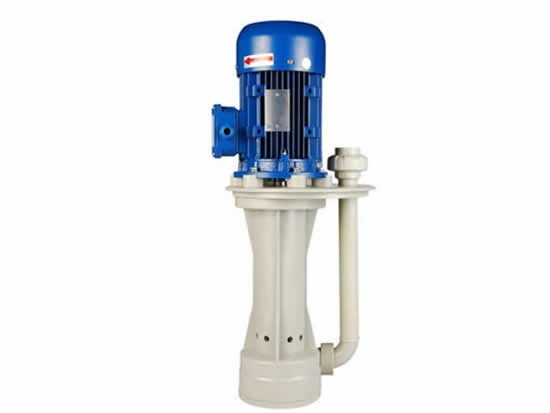

PP Vertical Pump are Designed for the recycling, treatment, and filtration of corrosive liquids (including those with solids) having the tendency to foul, kept in constant level tanks.
The Saiken Pumps Vertical series are constructed at standard lengths, without intermediate bearings, without guide bushings or mechanical seals to eliminate any sliding parts. This mechanically and hydraulically advanced construction allows for the use of the PP vertical pumps where wear from abrasion (due to crystallization or calcareous deposits) combined to the chemical aggression of the liquid itself requires a more incisive solution than normal vertical pumps.

2. Model Indication:
DT- 50- VK- 5- 6- V- F
① ② ③ ④ ⑤ ⑥ ⑦

	Product Name	PP Plastic Vertical Pump
1.	Type No.	DT
2.	Caliber	40-1-1/2" 50-2" 65-2-1/2" 80-3" 100-4“
3.	Proportion	VK-1.1 VP-1.4
4.	Horse power	3-3HP 5-5HP 7.5-7.5HP 10-10HP 15-15HP
5.	Frequency	5-50HZ 6-60HZ
6.	O Ring material	V-VITON (FKM) E-EPDM N-NBR
7.	Pump material	F-FRPP K-PVDF

3. specification：

Model	Curve	Size (mm)	Power(HP)	Flow(LPM)	Head(m)	Total Flow (m)	Total Head (m)	Weight （Kg）
Model	50/60hz	Inlet/outlet	Power(HP)	50/60hz	50hz/60hz	50/60hz	50/60hz	Weight （Kg）
DT-40VK-1	a / A	50/40	1	175/120	6/8	250/200	11/12	29
DT-40VK-2	b / B	50/40	2	190/300	12/10	300/370	16/21	38
DT-40VK-3	c / C	50/40	3	270/350	12/14	375/480	20/20	41
DT-50VK-3	d / D	65/50	3	330/300	12/15	460/500	20/22	41
DT-50VK-5	e / E	65/50	5	470/550	14/15	650/710	24/29	55
DT-65VK-5	f / F	80/65	5	500/650	14/15	680/800	24/29	55
DT-65VK-7.5	g / G	80/65	7.5	590/780	16/18	900/930	26/36	95
DT-65VK-10	h / H	80/65	10	590/890	18/20	950/1050	28/39	106
DT-100VK-15	i / I	100/100	15	1000/1200	27/25.5	1760/1760	39/44	155
DT-50VK-3	j / J	65/50	3	290/300	12/12	350/430	20/19	41
DT-50VK-5	k / K	65/50	5	400/430	14/15	470/490	23/27	55
DT-65VK-7.5	m / M	80/65	7.5	450/600	18/16	785/790	26/29	95
DT-65VK-10	n / N	80/65	10	570/800	18/18	950/950	26/37	106
DT-100VK-10	q / Q	100/100	10	800/950	20/20	800/950	25/31	106
DT-100VK-15	o / O	100/100	15	800/1000	29/29	1680/1730	38/43	155
