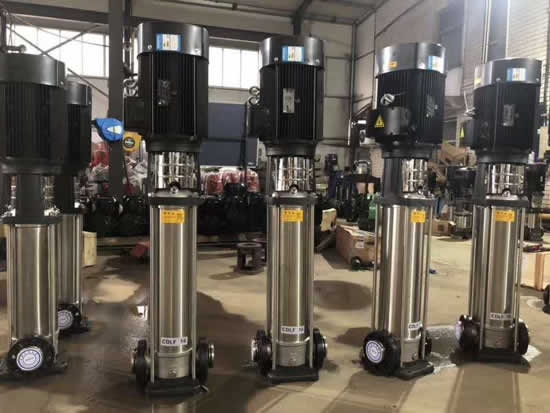

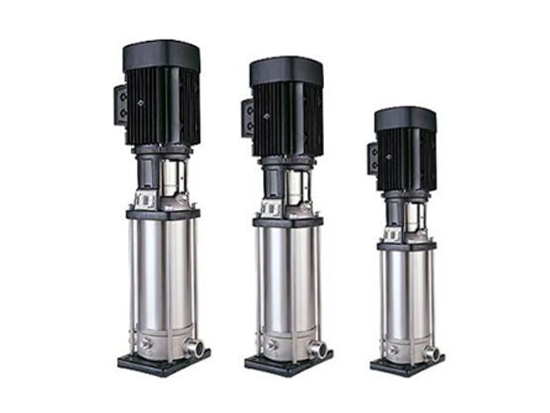

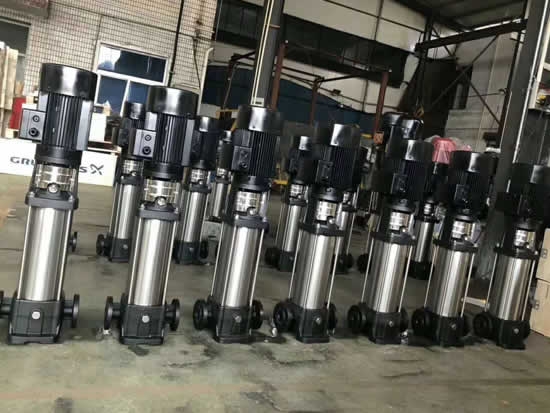

CDLF / CDL is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts.The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload. CDL type is applicable to con-veying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid,Wetted parts is made of 304 stainless steel or 316L
●Water supply: Water filter and transport in Waterwork, boosting of main pipeline, boosting in high-rise buildings. ●Industrial boosting: Process flow water system , cleaning system, high-pressure washing system, fire fighting system. ●Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system,machine-assciated purpose, acids and alkali. ●Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool. ●Irrigatio: Farmland irrigation,spray irrigation, dripping irrigation.
Electric motor ●Full-enclosed air-blast two-pole stan-dard motor ●Protection class: IP55 ●Insulation class: F ●Standard voltage, 50/60Hz: 3x200-230/346-400V 3x220-255/380-440V 3x220-277/380-480V
Operation conditions ●Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers. ●Liquid temperature:Normal temperature type: -15˚C ~ +70˚C, Hot water type: +70˚C ~ +120˚C ●Ambient temperature:up to +40˚C ●Altitude: up to 1000m
