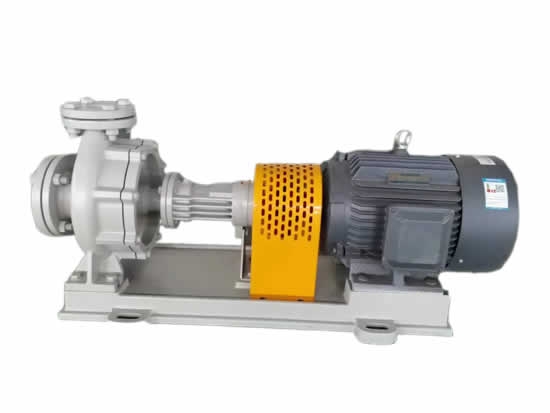

RY hot oil transfer pumps & thermal oil circulation pumps

RY air-cooled hot oil circulation pump is a kind of ideal hot oil circulation pump or heating body pump, is an ideal heat equipment supporting pump. RY type high temperature heat conduction oil pump reasonable structure, good performance, reliable operation. The heat conduction oil pump is suitable for conveying not containing solid particles of high temperature liquid. The corrosion degree and using temperature depends on the contact with the media of the main components of the material. High temperature heat conduction oil pump use of self heating and cooling structure, change the traditional water cooling structure, make simple structure, small volume, save operating cost, good performance, the use of reliable, is our country the digestion and absorption of foreign oil pump developed on the basis of the second generation product.

Material: Cast Steel，SS304.

Data table:

泵型号	流量 m³/h	扬程 m	转速 n r/min	功率 kw		效率η %	电机（Y型）机座号
泵型号	流量 m³/h	扬程 m	转速 n r/min	轴功率	配用功率	效率η %	电机（Y型）机座号
15-15-100	3	10	2800	0.45	0.75	20	801
15-15-100A	2	10	2800	0.36	0.55	18	AO2-7122
15-15-100B	1	10	2800	0.2	0.37	15	AO2-7112
20-20-100	1	10	2800	0.09	0.37	26	AO2-7112
20-20-125	1.5	22	2800	0.22	0.75	30	801
40-25-160	10	28	2900	1.72	2.2	45	90L
25-25-160	3	27	2900	0.53	1.5	30	90S
32-32-160	6	28	2900	0.85	1.5	50	90S
50-32-160	12.5	30	2900	1.90	3.0	57	100L
50-32-200	18	40	2900	3.92	5.5	50	132Sl
50-32-200A	16	32	2900	3.35	4	42	112M
50-32-250	12.5	80	2900	6.2	11	44	160Ml
65-50-160	20	32	2900	3.17	5.5	55	132S1
65-40-200	30	48	2900	6.3	7.5	62	132S2
65-40-200A	25	35	2900	4.0	5.5	59	132S1
65-40-250	25	80	2900	10.3	15	53	160M2
65-40-250A	20	51	2900	5.67	7.5	49	132S2
65-40-315	25	125	2900	18.9	30	45	200L1
65-40-315A	22.5	100	2900	15.3	22	40	180M
80-50-200	50	50	2900	9.7	15	70	160M2
80-50-200A	45	40	2900	7.8	11	63	160M1
80-50-200B	40	32	2900	6.37	7.5	55	132S2
80-50-250	50	80	2900	17.1	22	58	180M
80-50-250A	43	60	2900	12.8	15	55	160M2
80-50-315	50	125	2900	30.4	45	56	225M
80-50-315A	45	100	2900	23.6	30	52	200L1
100-65-200	100	50	2900	18.4	22	74	180M
100-65-200A	94	44	2900	16	22	70	180M
100-65-200B	87	38	2900	13.8	15	65	160M2
100-65-200C	80	32	2900	11.8	15	59	160M2
100-65-250	100	80	2900	32.06	37	68	200L2
100-65-250A	95	72	2900	29	37	64	200L2
100-65-250B	90	65	2900	26.2	30	61	200L1
100-65-250C	85	50	2900	20.3	30	57	200L1
100-65-315	100	125	2900	50.06	75	68	280S
100-65-315A	95	113	2900	45.23	55	64.63	250M
100-65-315B	90	100	2900	40.5	55	60.50	250M
100-65-315C	82	84	2900	34.76	45	54	225M
125-100-200	200	50	2900	35.4	45	77	225M
125-100-200A	178	40	2900	26.6	37	73	200L2
125-100-250	200	70	2900	47	55	80	250M
125-100-250A	190	63	2900	41.6	55	78	250M
125-100-250B	180	57	2900	37.9	45	74	225M
125-100-250C	170	51	2900	32.15	45	72	225M
125-100-250D	150	70	2900	40	45	70	225M
150-150-200	350	50	2900	60	75	80	280S
150-150-200A	313	40	2900	45	55	76	250M
200-150-400	350	50	1450	61.8	75	78	280S
200-150-400A	330	45	1450	52.8	75	77	280S
250-200-400	500	50	1480	86.2	110	79	315S
250-200-500	500	80	1480	136	160	76.5	315M
250-200-500A	400	50	1480	75	90	73	280M
