Magnetic Drive Pumps

Home Products Type Magnetic Drive Pumps

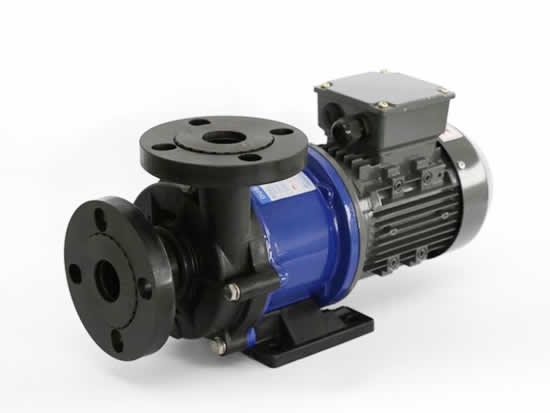

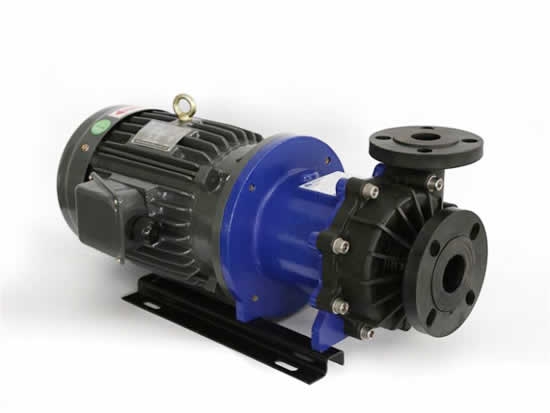

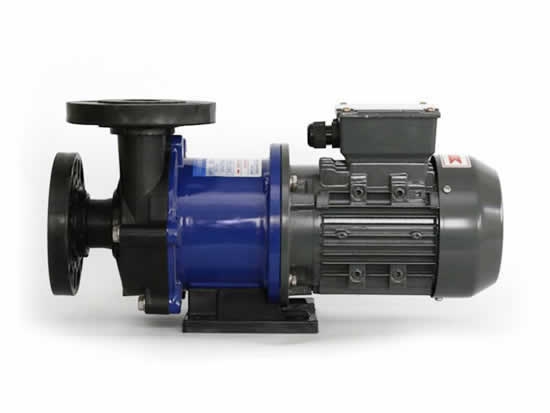

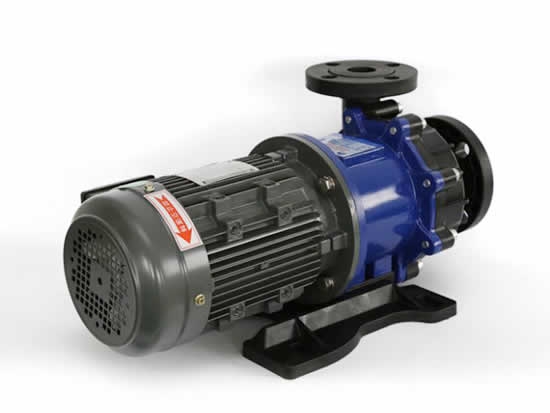

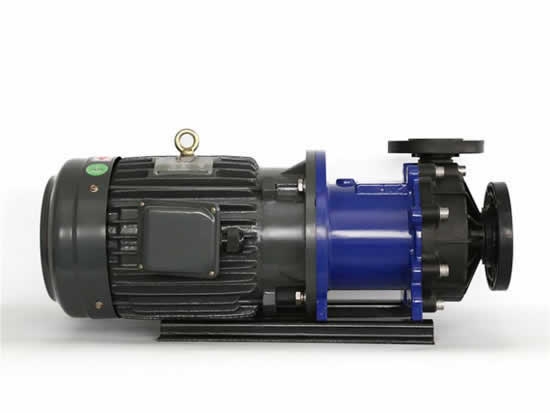

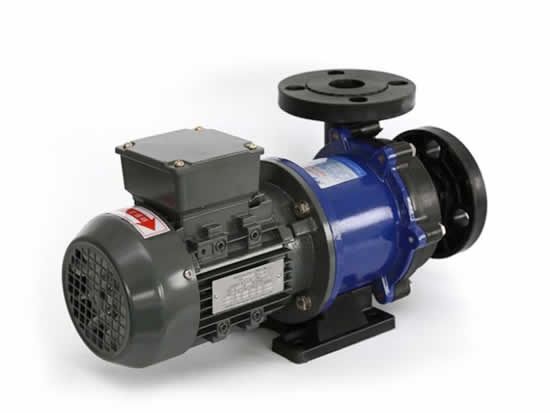

GFRPP Plastic Magnetic Pump

Materials in contact with the liquid: casing and impeller GFRPP/PVDF;
Flow 400LPM; Head 26 mlc;
Max temperature: PP 70°C – PVDF 90°C;
Max viscosity: 200 cSt;
Voltage: 3Phase 220V/380V/415V

Products

Product Details
GFRPP Plastic Magnetic Pump
Max. discharge capacity range (50/60Hz): 120 to 600/120 to 600 L/min,
Max. head range 12 to 33 / 11.5 to 33.5 m

1. Outstanding Acid / Alkaline Resisting Capability
    The material of pump body has four kinds to choose from, including PP(Polypropylene), GFRPP(Glass Fiber Filled Polypropylene), PVDF(Natural PVDF), CFRETFE(Carbon Fiber Filled ETFE). Correct choice of pump body material depends on acid / alkaline density of solution. To satisfied the market demand, Saiken was the pioneer to provide PP pump material for enhancing the capability of acid resistance.The  PP / GFRPP material can resist temperature up to 75℃. The PVDF material can resist temperature up to 90℃. The CFRETFE material can resist temperature up to100℃. In application almost all solutions can be transferred with safety.

2. Corrosion Resisting
    The major parts of the pump feature outstanding corrosion-resist capability. For example the pump spindle can be made from ceramic and SIC. The ceramic spindle is generally applied for low corrosion liquid. The SIC spindle is excellent for high corrosion liquid.

3. Unique design of Bearing for dry running endure
    Due to the unique design of Bearing, while the pump operating normally, the fluid circulated cooling with impeller, spindle and magnet capsule. Although the pump dry-running, the temperature cannot be get higher quickly to avoid pump be damaged seriously.

4. Easy to Assemble
    The internal parts of a magnetic drive sealless pump are fully standard for easy assembling completely constructed with high performance. Parts replacement is easy to made without need to of any specially tool. It features convenient maintenance, dismantling and inspection for time saving service.

5. Maximum Durability
    The MPX(0.37Kw~2.2Kw) series pump employs extra powerful permanent magnet featuring outstanding performance and coupling capability.

6. Versatile Applications
    The magnetic drive sealless pump MPX series is ideal for low capacity with high head or high capacity with low head applications. It is widely applied in various industrial process. Such as PCB process,chemical industry, circulated filtering, etching, plating, surface treatment, polluted water treatment, etc. these pumps assure outstanding performance and maximum durability.
