WRY Centrifugal hot oil pump for Thermal oil circulation
It is coupling type circulation pump for transferring the high temperature conduction oil. The entrance of the pump is axial suction, the exit is vertical center. Transferring medium is conduction oil without the particle and fiber.
∗ Single stage end suction centrifugal structure pump with high temperature oil sealing for hot oil with temperature ≤350°C.
∗ Air cooling structure, without additional cooling device. Self-lubricating bearing.
∗ Works as hot oil(thermal oil) system booster pump for boiler, bitumen, resin, spinning and printing, dyeing, plastic and rubber processing, foodstuff industry, etc.
Product details:
Working Principle:
|
Centrifugal Pump
|
Material:
|
Cast Steel, Ductile iron, SS304
|
Max. Temperature:
|
350°C
|
Diameter Size:
|
20~300 mm
|
Flow Range:
|
4.5~1000 m3/h (other request can be customized)
|
Head Range:
|
15~100 m (other request can be customized)
|
Usage:
|
Hot Oil, Cooling Oil, Circulation Oil
|
Drive:
|
Electric Motor, Diesel Engine
|
Liquid with Solid:
|
No
|

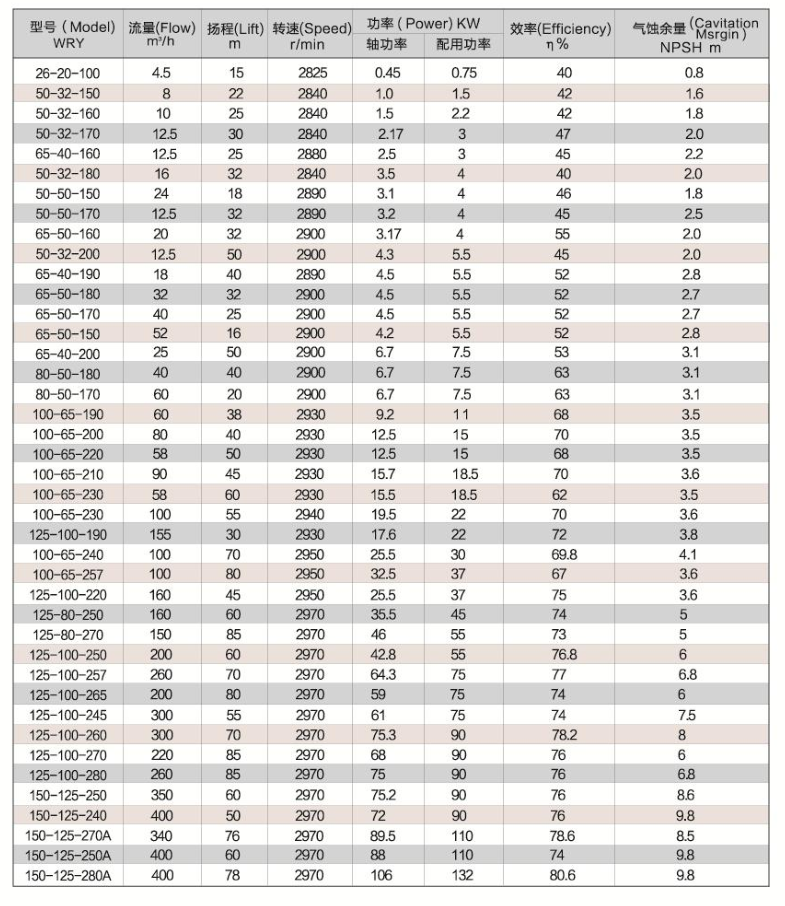

Performance Data:
