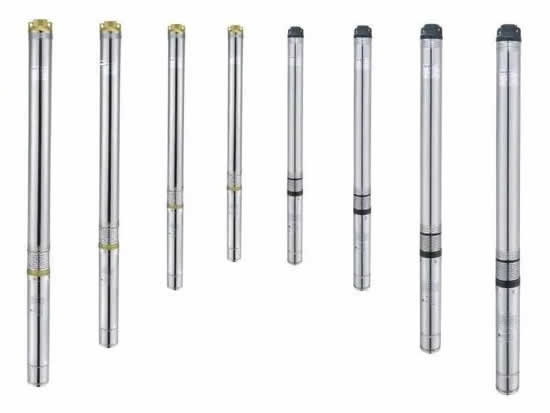

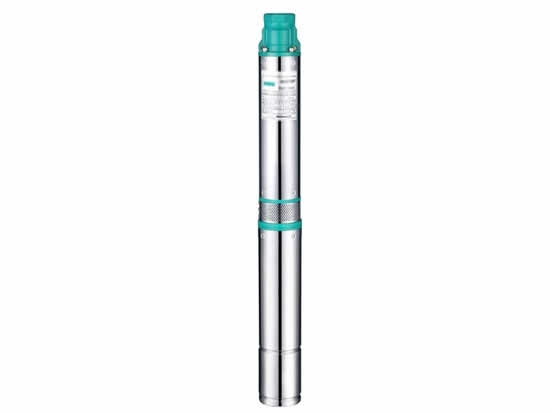

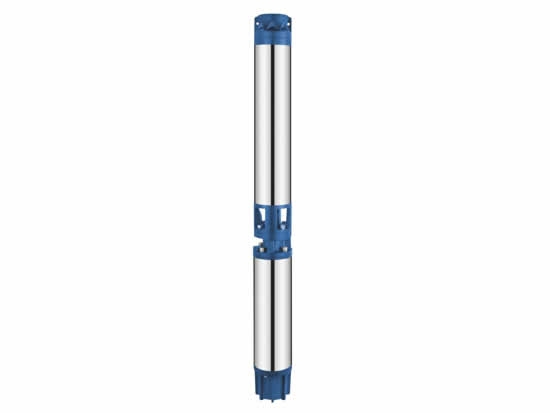

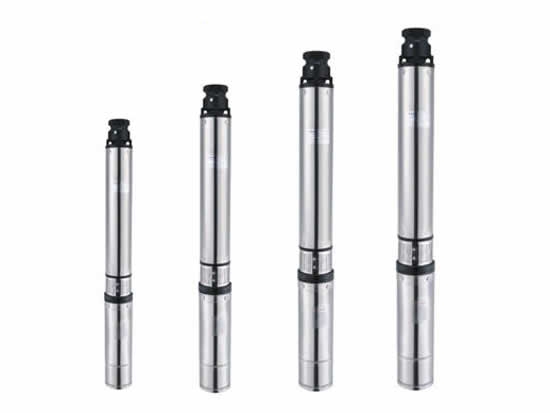

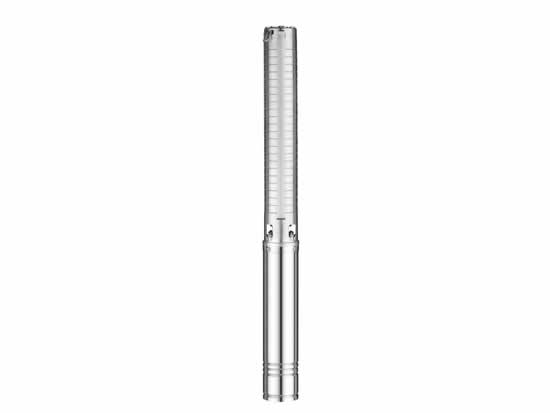

4 Inch SS impeller deep well pump

Max. Flow: 22m3/h
Max. Head: 480m
Application Limits
Max. ambient temperature< 40℃;
Sand content(in mass fraction)up to 0.01%;
hydrogen sulfide content up to 1.5mg/L, chlorideion content up to 400mg/L;
pH 6.5 to 8.5;
Maximum: 70 m below the static water table.

Categories:Deep Well Pump

Add To Basket Get A Quote

Product Details

Description
4 Inch deep well pump is a new high-grade product developed and produced by advanced electric pump technology and equipment. The main part of the unit is made of stainless steel and copper alloy. It has high efficiency, energy saving, wear resistance, beautiful appearance and it is convenient installation and use. This product is especially suitable for pumping groundwater in factories and schools. It is the ideal equipment for geological hydrology engineering, industrial, civil, and drainage irrigation.

Performance Range
Max. Flow: 22m3/h
Max. Head: 480m
Application Limits
Max. ambient temperature< 40℃;
Sand content(in mass fraction)up to 0.01%;
hydrogen sulfide content up to 1.5mg/L, chlorideion content up to 400mg/L;
pH 6.5 to 8.5;
Maximum: 70 m below the static water table.

Application Fields
Building/construction work/Domestic water supply;
Irrigation and Small water work;
Landscaping;
Water conservancy system;
Factory.

Features
Edible oil filled motor, stable& reliable running with pressure regulating membrane;
Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector;
Available with cable with a motor plug, disassemble conveniently;
Available with pump casing with plug, 2~8 m3/hrs series with single stage floating impellers, 10~16m3/hrs series with integrated stage floating impellers;
Installation in 4" or larger boreholes;

Optional Available On Request
Oil chamber is available with brass or SS304;Discharge chamber, Inlet parts are available SS304.
