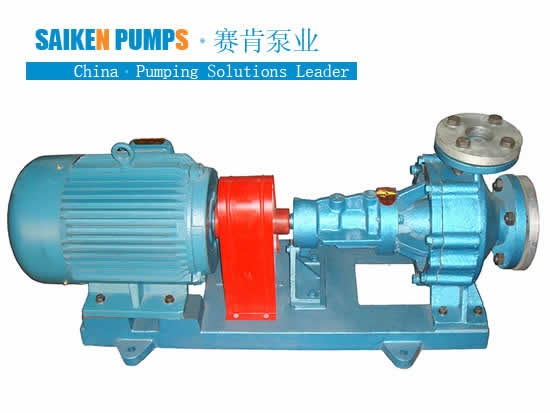

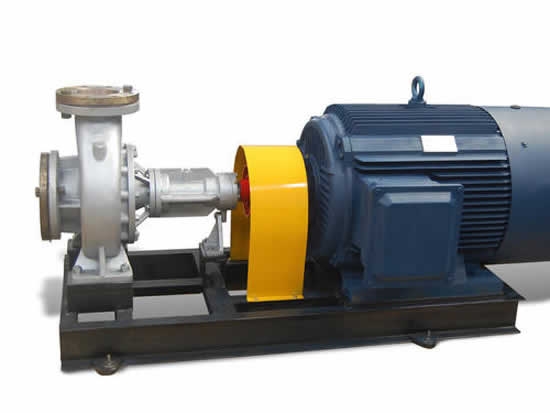

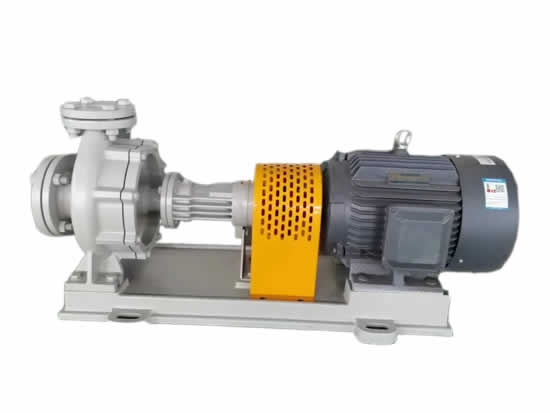

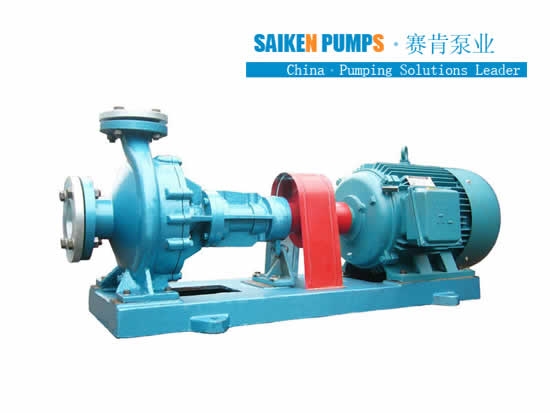

The Thermic Fluid Hot Oil Pump are Manufactured in special constructions for the circulation of heat Oil Transfer. The application fields are covered by the following high temperature and pressure Limits.
Admissible Temperature of Flow Medium - 350 Deg.C Admissible Internal Pump Pressure - 10 Bar Admissible Supply Pressure - 5 Bar. See to it that the existing NPSH Values of the plant should always be greater than the required NPSH Values of the Pump. Construction Features
Casing :- Volute – Type, end Suction, Backpullout, Centre Line Top discharge, integrally Cast feet, also available centre line support casing.
Impeller Enclose d type, High Mechanical and hydraulic efficiency, provided with back vanes to reduce pressure at the stuffing box.
Sealing Arrangement Graphite packing packed at gland box with cooling chamber to pass cooling water and protect graphite packings life.
Bearing Housing Available standard and reinforced bearing assemblies for high temperature or high suction pressure of .05mm. Bearing housing can be provided with a constant level oiler.
Throat Ring / Bush It is provided to further reduce the pressure an the stuffing box. It helps to prolong the life of graphite packings.
Shaft Sleeve Easily replaceable, compatible and hardened. Thermic Fluid Pumps are supplied from 1250 m3 against customer requirements.
