Product Details

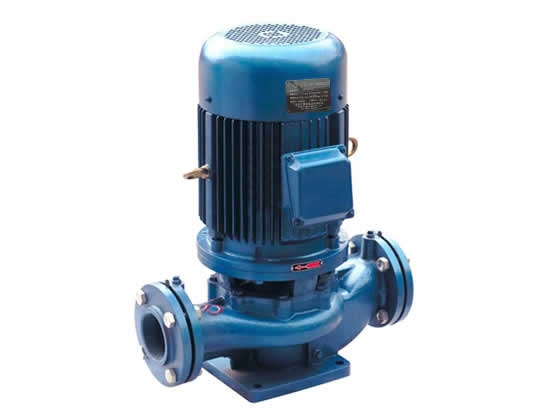

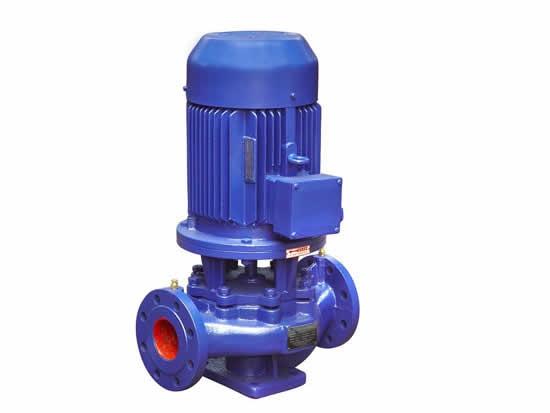

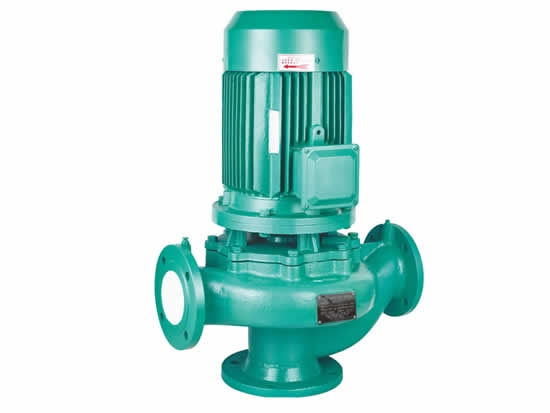

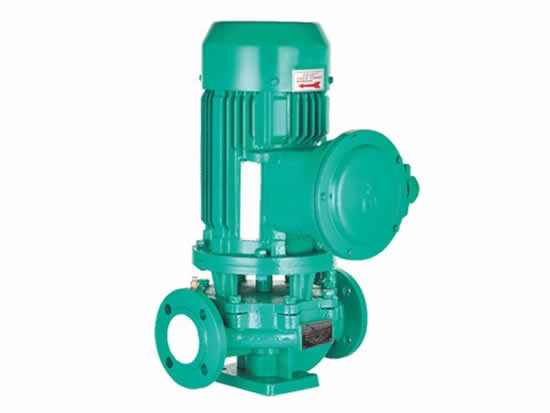

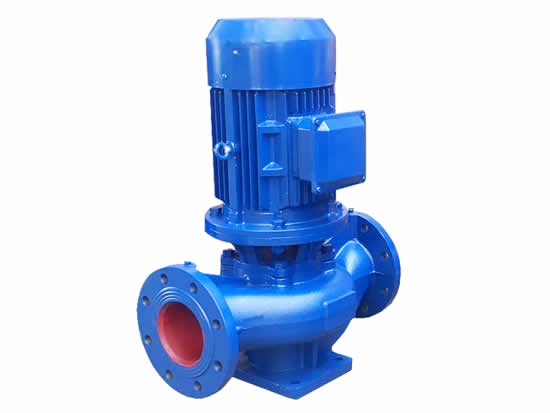

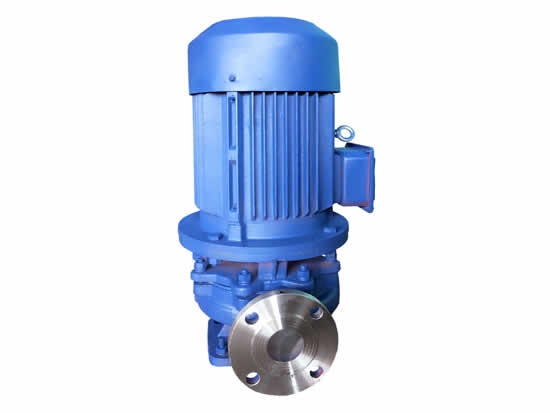

ISG vertical pipeline pump ISG pipeline pump, pipeline centrifugal pump
ISG pipeline pump is a domestic excellent hydraulic model selected by scientific and technical personnel and internal water pump experts. It adopts the performance parameters of IS type single-stage single-suction centrifugal pump, and is designed by clever combination on the basis of general vertical pumps. At the same time, it is designed according to the use temperature, Different mediums are derived from ISG type suitable for hot water, high temperature and corrosion resistant chemical pumps and oil pumps. This series of products have the advantages of high efficiency, energy saving, low noise, reliable performance, etc., and meet the latest national machinery department JB/T53058-93 standard requirements. The products are designed and manufactured according to the international ISO2858 standard. ISG vertical pipeline centrifugal pump has a flow range of 1.5～1200m3/h and a head range of 8～150m. There are more than 250 specifications such as basic type, expanded flow type, A, B, and C cutting type. According to the different fluid medium and temperature, it is designed and manufactured into IRG hot water pipeline pumps, IHG chemical pumps, YG oil pumps and IHGB explosion-proof chemical pumps with the same performance parameters.
ISG pipeline pump should be selected according to the temperature medium
1. ISG vertical pipeline centrifugal pump is used to transport clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, heating Through refrigeration cycle, bathroom and other hot and cold water cycle pressurization and equipment matching, the use temperature T <80 ℃.
2. IRG hot water pipeline centrifugal pump is suitable for metallurgy, chemical industry, textile, wood processing, papermaking, and high-temperature hot water pressurization circulating pumps in restaurants, bathrooms, hotels and other boilers, as well as urban housing heating circulation pumps. The use temperature is below 120℃.
3. GRG high temperature pipeline centrifugal pumps are widely used in: energy, metallurgy, chemical industry, textiles, papermaking, high-temperature hot water pressurized circulating pumps in restaurants, bathrooms, hotels and other boilers, as well as urban housing heating circulation pumps, the use temperature is below 240 ℃.
4. IHG vertical stainless steel pipeline centrifugal pumps are used to transport liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. They are suitable for petroleum, chemical, metallurgical, electric power, papermaking, food and pharmaceutical and synthetic fiber sectors. The operating temperature is -20℃ ~ 120℃.
5. YG pipeline explosion-proof oil pump is used to transport petroleum products such as gasoline, kerosene, diesel, etc. The temperature of the transported medium is -20℃ ~ + 120℃.
6. IHGB stainless steel explosion-proof pipeline pump is suitable for transporting flammable chemical liquids.
7. ISGD, IRGD, GRGD, IHGH, YGD, IHGBD vertical low-speed pipeline centrifugal pumps are suitable for occasions with low environmental noise requirements and air conditioning cycles.
Unique advantages of ISG pipeline pump
1. ISG vertical pipeline centrifugal pump has compact structure, small volume and beautiful appearance. Its vertical structure has a low center of gravity and the center of gravity is in the center of the pump foot, which enhances the pump's operational stability and life.
2. Easy to install. The inlet and outlet have the same diameter and are on the same centerline, and can be directly installed on any part of the pipeline like a valve. The motor plus a rain cover can be used outdoors. The ISG vertical pipeline centrifugal pump is equipped with mounting feet to facilitate the stable installation of the pump:
3. Stable operation, low noise and high concentricity of components. The motor adopts low-noise bearings and is equipped with a non-stop refueling device. The pump impeller has an excellent dynamic and static balance, runs without vibration, and improves the use environment.
4. No leakage. The shaft seal adopts corrosion-resistant and wear-resistant hard alloy mechanical seal, which solves the serious leakage problem of centrifugal pump packing, prolongs the service life, and ensures the clean and tidy operation site:
5. Convenient maintenance. There is no need to dismantle the pipeline, just dismantle the pump cover nut, take out the motor and transmission components for maintenance.
6. The pump can be installed vertically, horizontally, and in multiple ways according to the conditions of the site. According to the flow head requirements, the parallel and series methods can be used to increase the required flow head.
ISG pipeline pump
What are the requirements for use?
1. The suction pressure of the ISG pipeline pump is ≤1.0Mpa, or the maximum working pressure of the pump system is ≤1.6Mpa, that is, the pump suction inlet pressure + pump head ≤1.6Mpa, and the pump static pressure test pressure is 2.5Mpa. Please indicate the system working pressure when ordering . When the working pressure of the pump system is greater than 1.6Mpa, it should be stated separately when ordering. In order to make the pump's flow-through parts and connection parts use cast steel materials.
2. Ambient temperature <40℃, relative humidity <95%.
3. The volume content of solid particles in the conveyed medium does not exceed 0.1% of the unit volume, and the particle size is less than 0.2mm.
Note: If the medium used is with fine particles, please specify when ordering so that wear-resistant mechanical seals can be used.
