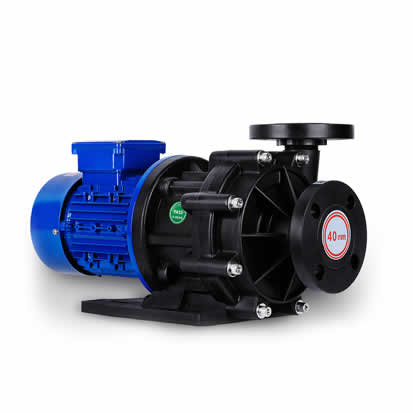

What does the magnetic drive pump consist of? In addition to the magnetic coupler, the structure design is similar to that of centrifugal pump. Understanding its internal structure can provide essential basic knowledge for daily maintenance, which is what each pump personnel needs to master. Simply put, its structure consists of three parts: pump body, magnetic coupler and motor.
What is the magnetic pump composed of, simply can be divided into the following parts:
1, composed of pump body and pump cover shell part, function is to bear all the pressure of the magnetic pump;
2. The rotor part composed of the rotating parts installed on the pump shaft and the rotating parts installed on the drive shaft is used to carry the impeller and the inner rotor, which is the key component of transferring torque;
3. The connecting part composed of the connecting frame, the bearing box and other parts plays the role of connecting and supporting. It is a static connecting part. It also includes a sliding bearing and a shaft sleeve, and a thrust disc;
4, the power source of the motor is the transmission part, the diaphragm type extension coupling parts connected to provide convenience for maintenance work, in the maintenance needs only need to remove the diaphragm in the middle of the coupling can;
5. Magnetic coupler composed of inner and outer rotors, which are used together, is the transmission component of magnetic pump;
6, the use of static sealing design of the isolation sleeve, the role is not closed liquid.
From the structure of the magnetic pump consists of what, respectively, sliding bearing, rolling bearing, rolling bearing frame (or bearing box), bearing body, magnetic coupler, pump shell and pump cover, impeller, pump shaft, inner magnetic cylinder and so on.
In summary, a brief introduction to the composition of the magnetic pump, on the whole, the internal parts of the magnetic pump rubber other pump products are not many, whether assembly or maintenance are very convenient, no special configuration of complex maintenance work. It should be noted that in many components, the isolation set of material and production process requirements are higher, if poor quality is easy to exacerbate the wear of the internal and external magnetic steel, it is recommended to give priority to the purchase of magnetic pump such as saiken pump technology reliable manufacturers, if there are other products such as screw pump, fluorine plastic magnetic pump and other customized needs, can also contact me directly.
